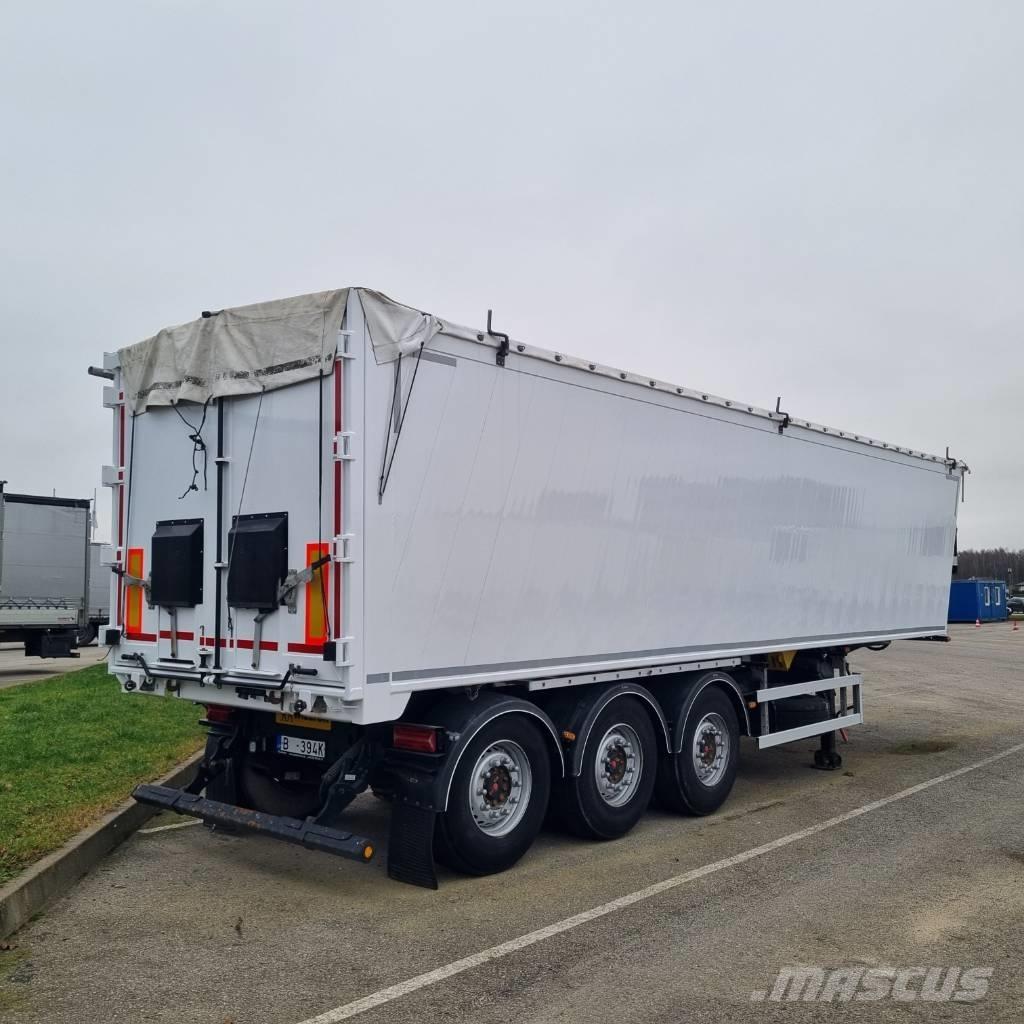

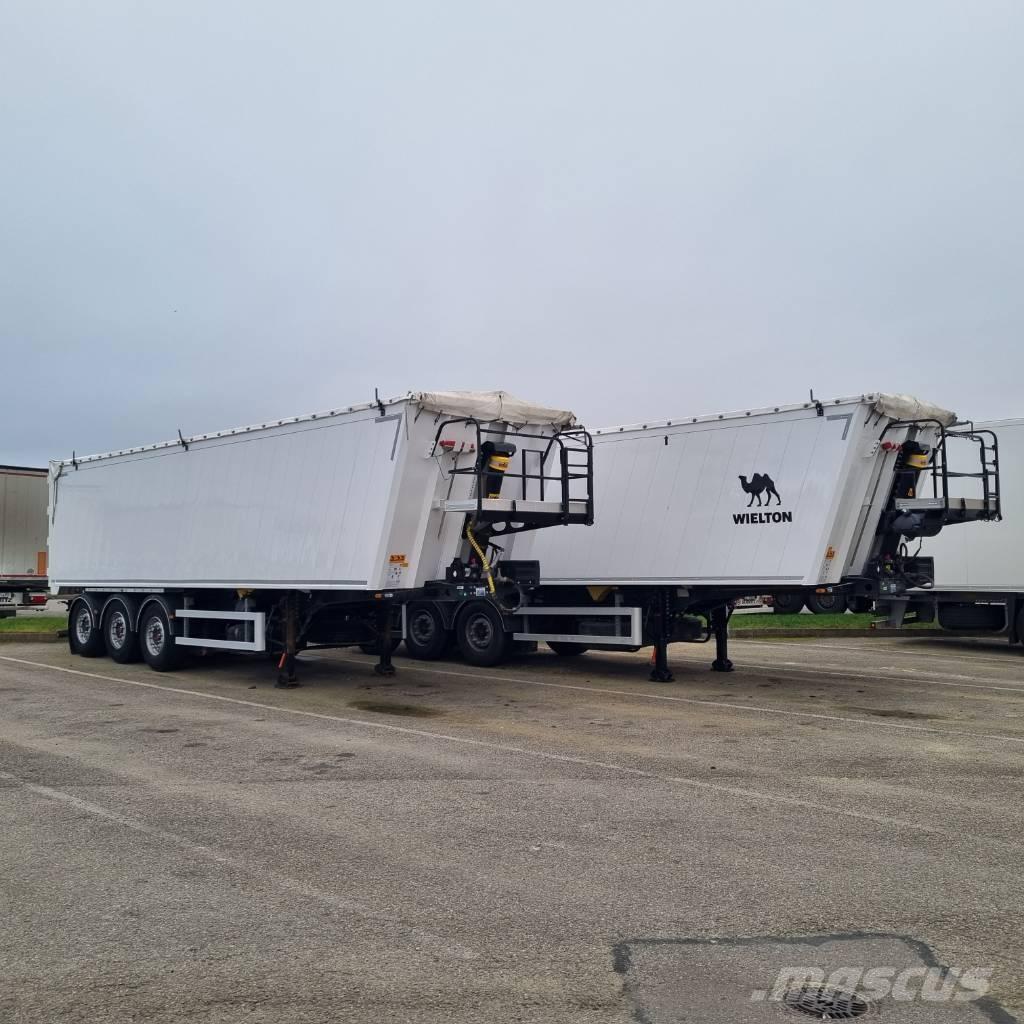

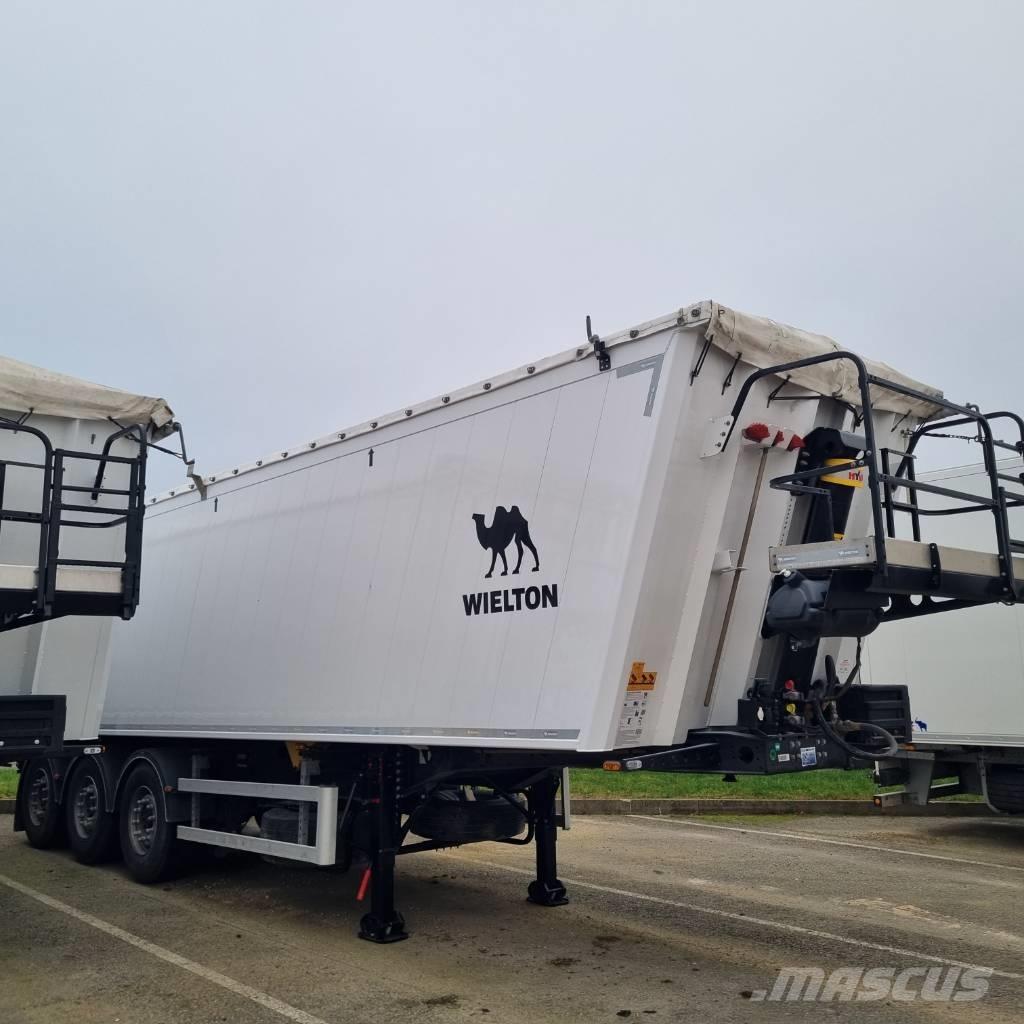

Wielton NW-3

Chassis Frame made of high-strength, high-quality steel S700; ISO1726:2003 3 axles with disc brakes – technical load capacity 9,000 kg, SAF; Disc Brakes Air suspension Steel air tanks (23 kg difference compared to aluminum) First axle liftable Lifting and lowering crane H-S 2-inch kingpin Two-speed support legs SAF – 76 kg difference (aluminum legs) Side underrun protection frame compliant with ECE requirements Rear steel bumper compliant with ECE requirements Automatic air release from air bellows during unloading Fifth wheel height: 1150 mm or 1200 mm Brake system: KNORR BREMSE (2S/2M), compliant with ADR requirements Anti-lock braking system EBS 2S/2M with stability function – RSP or RSS or TRS, connects to ISO11992 socket Body Body made of aluminum sheets and profiles, floor 7 mm ENDUR-AL HB110, board width 350 mm and thickness 40 mm, profile wall thickness (inside body) 2.5 mm 450° angle between side walls and floor (60 kg difference without it) Front wall with 20° angle Wielton logo on side walls Front ladder with platform on front wall Rear: Tailgate-doors (½ + ½) with windows in each door Single-leaf tailgate-door with window (grain) and hydraulic hooks (100 kg difference) Hydraulic cylinder without return valve at trailer front HYVA Folding tarpaulin (folds to trailer sides) with frame, color Crossbar between boards Electrical Installation (ASPOCK ECO LED II) 24V compliant with ECE requirements Rear combination lights LED lighting Illuminated license plate Side perimeter lights (LED) Side marker lights around perimeter (LED) Reflective plates 2 connection sockets, socket for EBS, without connecting cables
