BIK WC-75
税別価格
金額応相談
9
お気に入り
シェア
検索結果を保存印刷
情報
機械カテゴリー
その他昇降機・クレーン
メーカー／型式
BIK WC-75
コンディション
未使用
機械の所在地
Milford, Massachusetts
国
アメリカ
一般グレード
1
2
3
4
5
マスカス ID
E1708829
詳細
最大リフト高度
1.22 メートル
その他情報
Boom Details

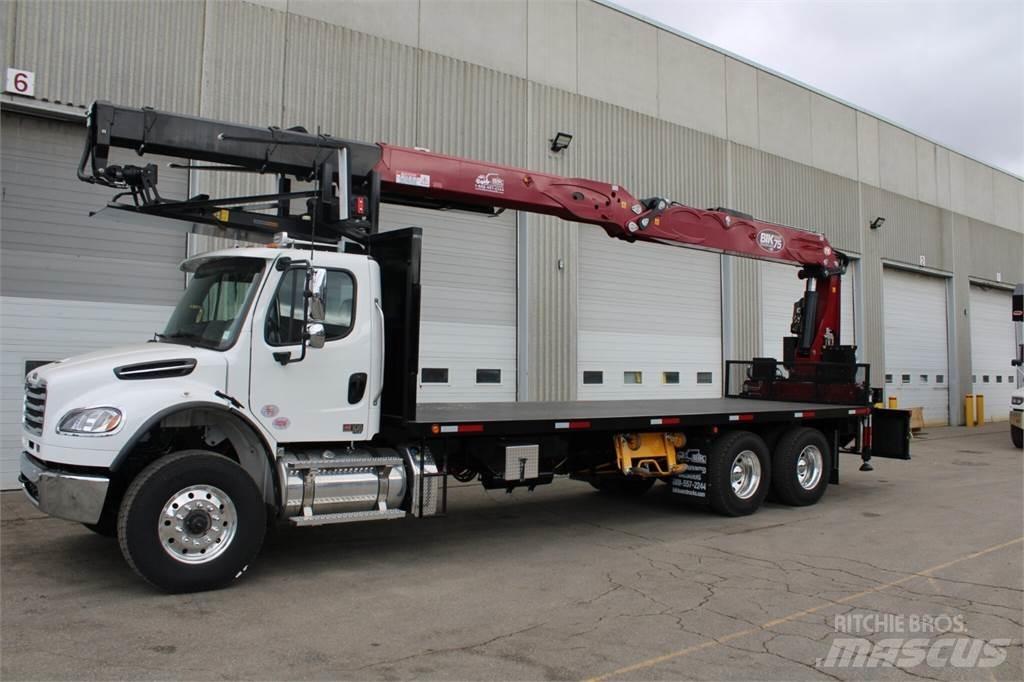

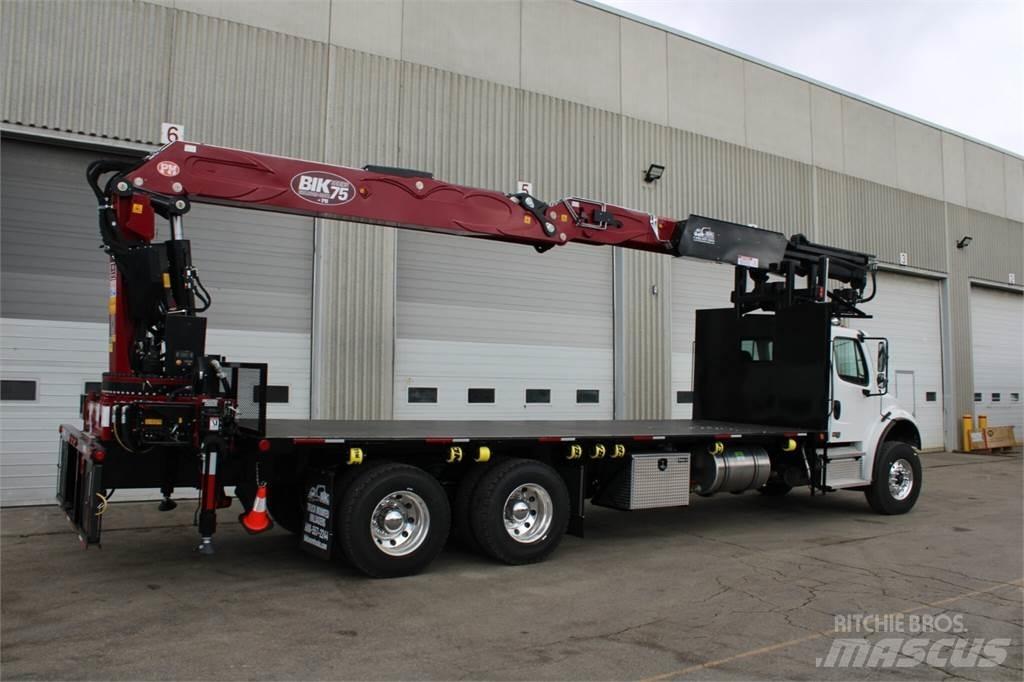

New – BIK “Wallboard-Crane” Series WC-75 by PM
8th Floor Lift
Installed at rear – Best Capacity in its Class ! 4- Hyd Extensions to 62’ horizontal reach (74’ vertical )
Vertical Boom Capacity:
7,510 lbs – 70’up & 23′ out
5,480 lbs – 65’up & 33′ out
4,380 lbs – 58′ up & 43′ out
Internal cylinders on all boom extensions, Outer boom cylinder guard
360 Degree Continuous (Endless) Rotation and Dual Planetary Gear
Drive Motors – 10 WARRANTY – on Turret Bearing
Dual Power Link Connections at Main and Articulating Cylinders, enhanced lifting power throughout
Super Xtra Wide Stabilizers – 27’ span
, hydraulic out and down type
Power Tronic Electronic Safety System
allowing constant crane monitoring & visual display
5-level stabilizer deployment control system
– reduces boom capacity in proportion to shortened stabilizer deployment
DANFOSS Valve Manual Boom Levers
– Located on Boom Column & SCANRECO Proportional Radio Remote Control
Radio Remote Control includes
: 2-batteries, in-cab charger, and back-up cord, Continuous Rotation Kinshoffer Drywall Forks
Flanged holding valves, double acting check valve for the down movement of the stabilizers
Hydraulic Oil Cooler, high pressure return filter and min. 40-gallon oil tank for boom
Installed back of cab
, with integral sub-frame and specialized torsion bracing to meet or exceed all CMVSS Standards
Deck Details
New – 24′ 8 X 102″ Steel Flat Deck:
With hard wood deck surface
66″ + headboard with over-cab drywall fork boom rest
8 sliding tie down winch straps on passenger side
Winch bar holder and winch bar
Ladder
Reflectors
5-side lights as required by ministry standards
Truck Details
2025 Freightliner M2-106 3-axle Diesel Truck: 60,000 lb GVWR
CUMMINS 350 hp
Allison automatic transmission
20,000lb front axle with 385/65R22.5 Front tires on Steel white rims
40,000lb Rears with 11R22.5 tires on Aluminium outer rims – steel inner
Full double frame chassis
288″ wheel base
54″ spread at ta
Truck Features Include: Air cond., AM/FM stereo, power windows/locks, lilt steering, cruise, air ride cab, painted bumper, htd mirrors, eng block heater, inter axle lock ups, single 70 gel alum fuel tank, truck cab white, trailer air tow package with lines to the rear of truck chassis, etc ..
Also Included:
Activate Extra Remote Features to Operate: Engine & start/stop, RPM & truck horn alert
(1} pc Alum Storage Box
(2) PVC stabilizer pads with holders one on each side
1″ drawplate at rear (for possible pintle hook)
Alternate Truck Chassis Options:
New 2025 Freightliner 114SD with 600hp Diesel, Automated trans, Loaded (same specs as above)
New 2025 Kenworth T880-SH with 510 hp Paccar 13L, Auto 18spd, Air Ride Suspension (otherwise same as above)
New 2025 Western Star 47X with 510hp Diesel, Automated trans, Loaded (same specs as above)
もっと表示する
BIK Boom Trucks - Milford, MA
177 Central St. 01757 Milford Massachusetts アメリカ
