JLG 860 SJ
税別価格
15
お気に入り
シェア
検索結果を保存印刷
情報
機械カテゴリー
ブームリフト 直伸型
メーカー／型式
JLG 860 SJ
製造年
2013
使用時間数
4780 時間
機械の所在地
Fontana, California
国
アメリカ
一般グレード
1
2
3
4
5
マスカス ID
C42B9414
価格
通貨を選択
詳細
最大アームスイング角度
360
エンジンメーカー
Deutz
その他情報

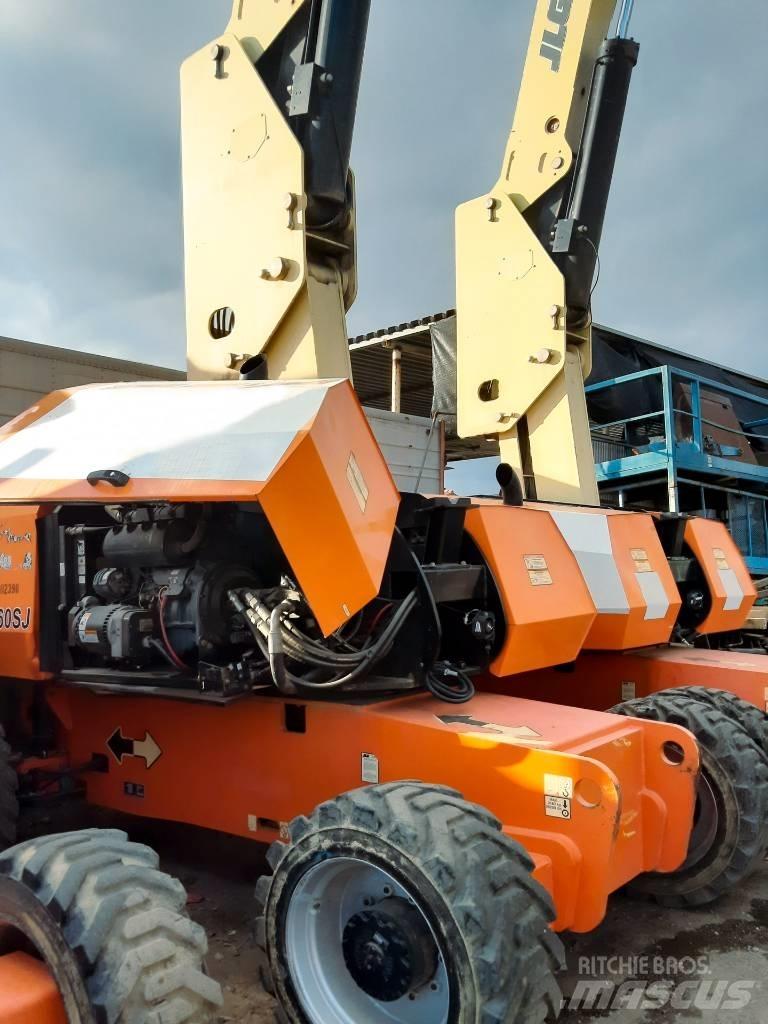

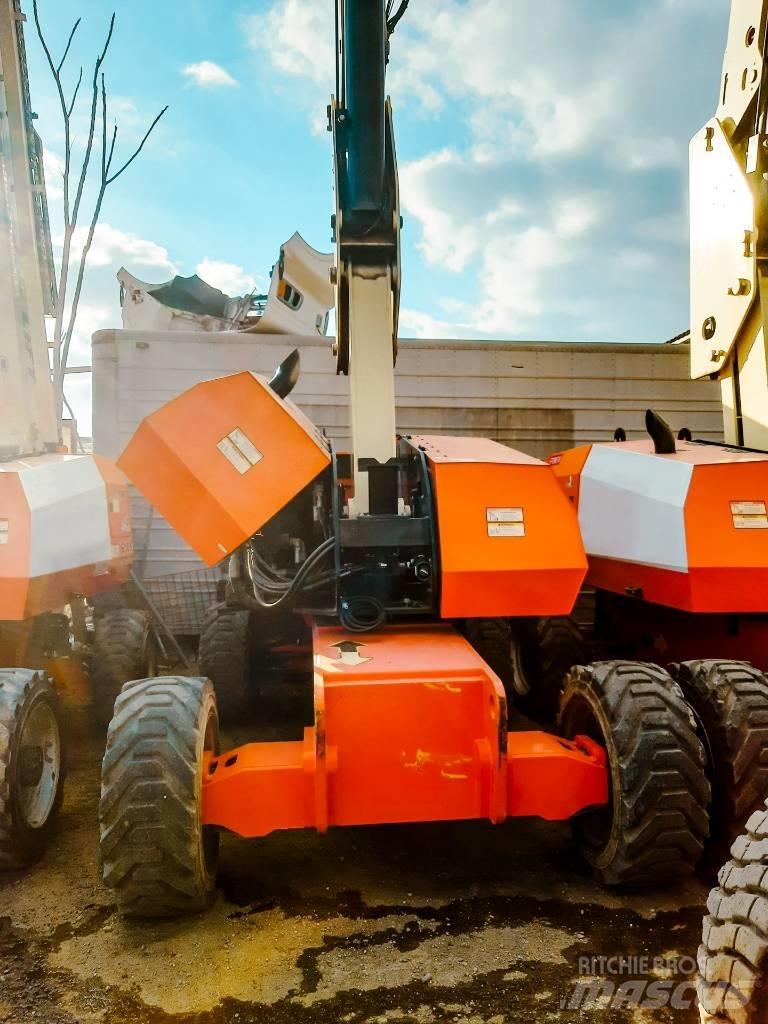

Used JLG 860SJ Telescopic Boom Lift with Deutz Engine and 4780 Hours
This JLG 860SJ telescopic boom lift is a used unit with a DEUTZ engine and 4780 hours of use. It features a 240V generator, Skypower, air compressor hookup, and foam-filled tires, providing reliable and versatile operation in a range of applications. With a maximum platform height of 86 feet, unrestricted platform capacity of 500 pounds, and horizontal outreach of 75 feet, this boom lift is well-suited for a variety of construction, maintenance, and repair tasks. Additionally, it has a 31-gallon fuel tank, 48-gallon hydraulic reservoir, and a ground clearance of 11 inches. The JLG 860SJ also has a continuous 360-degree swing, 130-degree jib articulation range, and 45% gradeability in 4WD mode. Measuring 40 feet in length, 8 feet 2 inches in width, and 10 feet in height, it has a tailswing of 4 feet 8 inches and a turning radius of 19 feet 8 inches. The machine weighs 36,888 pounds and has a maximum ground bearing pressure of 81 psi or 5.67 kg cm2. The JLG 860SJ is an ideal choice for those looking for a reliable and versatile telescopic boom lift that can handle demanding tasks.
(NOTE: AVAILABLE ONLY VIA APPOINTMENT. PLEASE GET IN TOUCH AND SCHEDULE AN APPOINTMENT.)
POWER SOURCE:
-Auxiliary Power: 12 Volts DC
-Capacity - Fuel Tank: 31 gal. / 117.35 L
-Engine Type - Diesel: DEUTZ TD 2.9L Tier 4 Final 67 hp
PERFORMANCE:
-Axle Oscillation: 8 in.
-Drive Speed - 2WD: 3.5 mph
-Drive Speed - 4WD: 3.5 mph
-Gradeability - 2WD: 25%
-Gradeability - 4WD: 45%
-Platform Capacity - Restricted: 750 lb
-Platform Capacity - Unrestricted: 500 lb
-Swing: 360 Degrees
-Swing Type: Continuous
-Turning Radius - Outside: 19 ft 8 in.
-Jib - Range of Articulation: 130 Degrees
DIMENSIONAL DATA:
-Ground Clearance: 11 in.
-Machine Height: 10 ft
-Machine Length: 40 ft
-Machine Width: 8 ft 2 in.
-Platform Dimension A: 3 ft
-Platform Dimension B: 8 ft
-Tailswing: 4 ft 8 in.

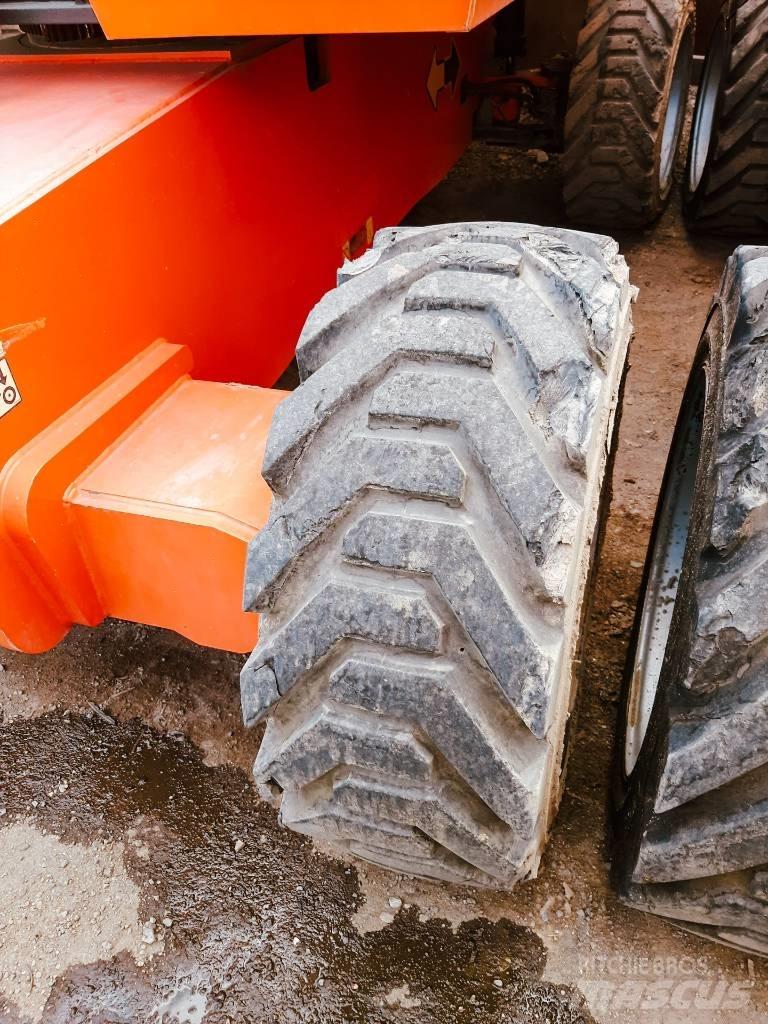

-Tire Size: 15-625 Foam Filled Lug Tread
REACH SPECIFICATIONS:
-Horizontal Jib Rotation: 0 Degrees
-Horizontal Outreach: 75 ft
-Platform Height: 86 ft
GENERAL:
-Capacity - Hydraulic Reservoir: 48 gal.
-Maximum Ground Bearing Pressure: 81 psi
-Machine Weight: 36888 lbもっと表示する
ReQuip Corporation
16516 Washington Dr 92335 Fontana California アメリカ
