1300 F degree Furnace / Stress Relieve Oven w/ Maxon Kinemax Burners
Title: 1300 F degree Furnace / Stress Relieve Oven w/ Maxon Kinemax Burners
SKU: 133615
Condition: Used
Dimensions: 200.00 (H) x 180.00 (W) x 280.00 (L) inches

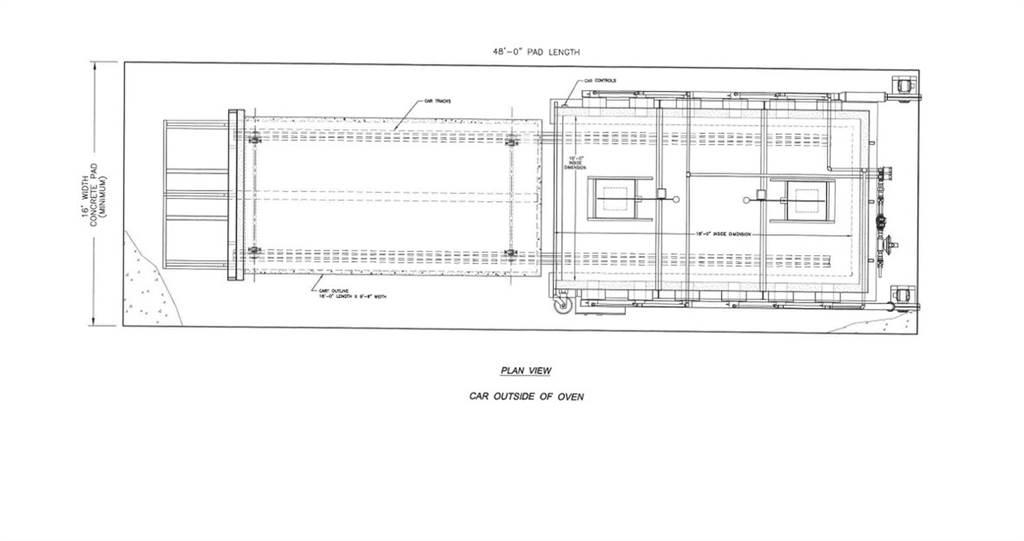

[Drawings PDF](... (Sketches) PDF](... temperature: Up to 1300 degrees F
Operating temperature: 1150 degrees F
Interior dimensions: 10' wide x 12' high x 18' long
Exterior dimensions: 15' wide x 17 high x 22' long
Distance required for furnace and car bottom travel: Allow 40 ft total length
Door: Door located on the back of car bottom
Refractory lining: 6'' thick 2300F Ceramic Fiber
Car bottom floor: 9'' thick (6'' castable with 3'' hard brick)
Furnace steel construction: 1/4 hot rolled steel plate
Control system (dual zone): West ramp soak controller Nema 4 panel
Chart recorder: Yokogawa 6 Channel Paperless Recorder
Burners (12): Maxon Kinemax, 500,000 btu/hr each
natural gas required: 6000 SCFH Maximum (6mm Btu/hr)
Electrical service: 575V, 3, 60amp service
Furnace uniformity: Plus or Minus 25 degrees F
Thermocouples: Type K in inconel sheath
Estimated shipping weight: 50,000lbsもっと表示する
