カミンズ 6BTA5.9-C170
税別価格
印刷
情報
機械カテゴリー
エンジン
メーカー/型式
カミンズ 6BTA5.9-C170
製造年
2018
コンディション
未使用
機械の所在地
Jining, Shandong, China
国
中華人民共和国
一般グレード
1
2
3
4
5
マスカス ID
9494F5E2
価格
通貨を選択
詳細
ストック番号
6BTA5.9-C170
最近の検査
yes
エンジン出力
125 kW (170 馬力)
部品ID
6BTA5.9-C170
フルサービス履歴
はい
製造番号 / シリアルナンバー
6BTA5.9-C170
運搬時重量
500 kg
運搬時寸法(全長X全幅X全高)
1200 x 1000 x 1400 mm
回転数
2300
排出量クラス
Stage II
コンディション情報/保証
ISO9001
製造国
中華人民共和国
納期
FCA, CPT, FOB, CFR, CIF, EXW
その他情報

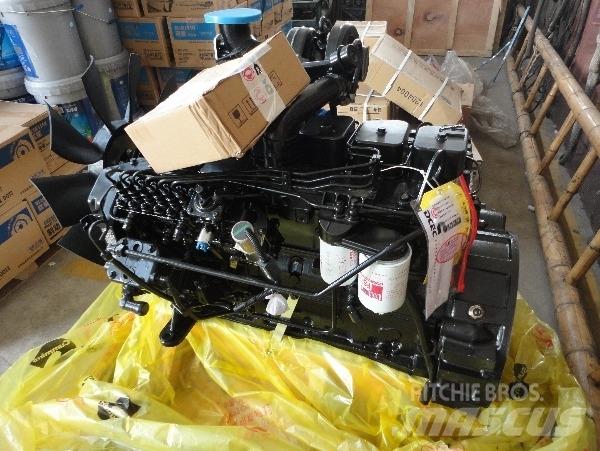

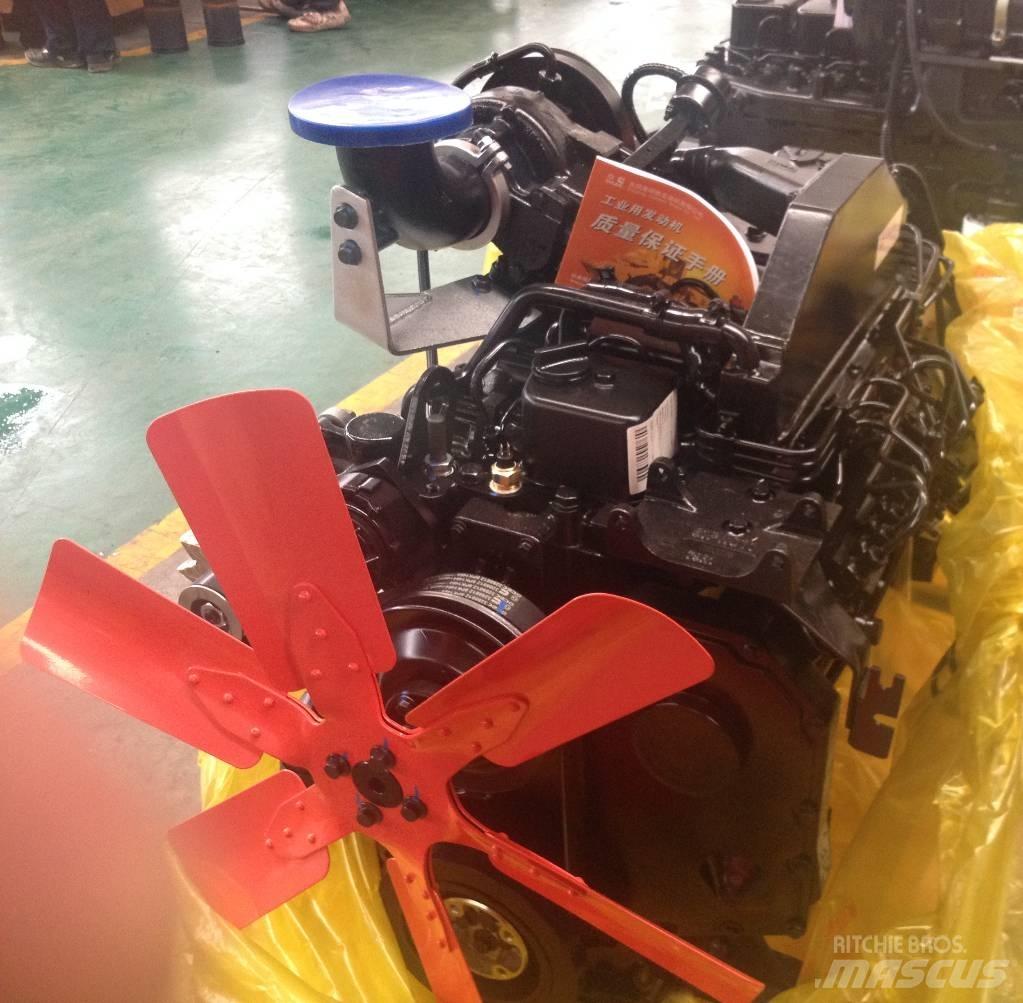

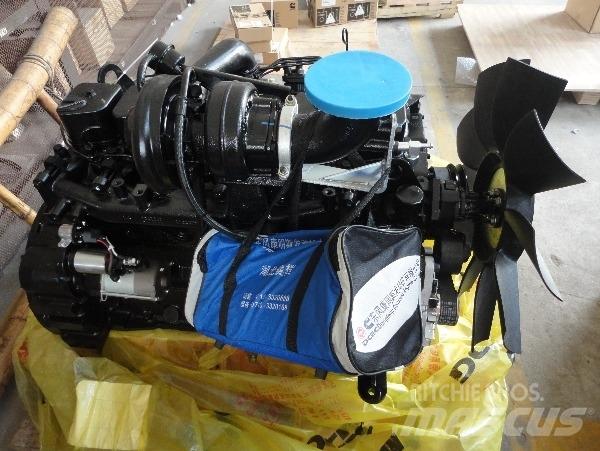

Cummins 6BTA5.9-C170 Industrial Diesel Engine
General Information
Engine Model 6BTA5.9-C170
Engine Type 6 Cylinders in Line
Displacement 5.9 L
Bore*Stroke(mm) 102 * 120
Engine Configuration Number D403039CX02
Net Weight (with flywleel & alternator) 443 Kg
Overall Diemension(L*W*H) 1110mm*750mm*988mm
Technical Specification
Certification Euro I
Aspiration Turbocharged & Intercooled
Fuel System Wuxi Weifu A Pump/RSV Governor
Electrical System(Starter Motor/Alternator) 12V/24V
Lowest Starting Temp without auxiliary system 0℃
Engine Cooling Fluid Volume 10.4 L
Performance Data
Rated Power/Speed 125 kW/170HP @ 2300rpm
Max.Torque/Speed 630 N.m @ 1400 rpm
Fuel Consumption @ Rated Power 233g/Kw.h
Idel Speed 750 rpm
Max. Continuous Running Altitude 2000 m
Jining Haoduo Import and export co., Ltd.
Second floor, First section, No.2 building,Jining Lantian Boiler 272000 Jining 济宁 Shandong 山东 中華人民共和国
