カミンズ KTAA19-G6A
税別価格
印刷
情報
機械カテゴリー
エンジン
メーカー/型式
カミンズ KTAA19-G6A
製造年
2018
コンディション
未使用
機械の所在地
Jining, Shandong, China
国
中華人民共和国
一般グレード
1
2
3
4
5
マスカス ID
5B91BE3C
価格
通貨を選択
詳細
ストック番号
KTAA19-G6A
最近の検査
yes
エンジン出力
555 kW (755 馬力)
部品ID
KTAA19-G6A
フルサービス履歴
はい
製造番号 / シリアルナンバー
KTAA19-G6A
運搬時重量
1950 kg
運搬時寸法(全長X全幅X全高)
1800 x 1100 x 1900 mm
回転数
1500
排出量クラス
Stage II
コンディション情報/保証
ISO9001
製造国
中華人民共和国
納期
FCA, CPT, FOB, CFR, CIF, EXW
その他情報

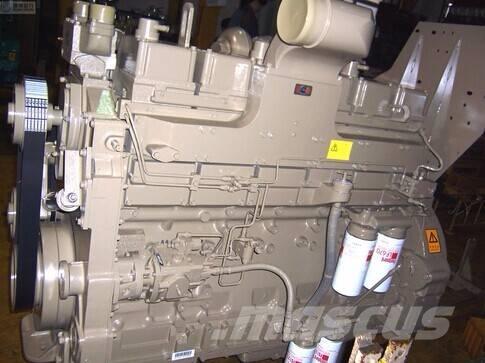

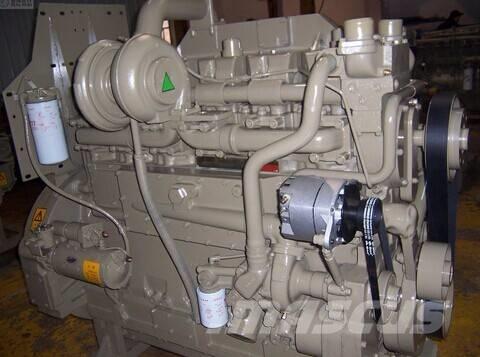

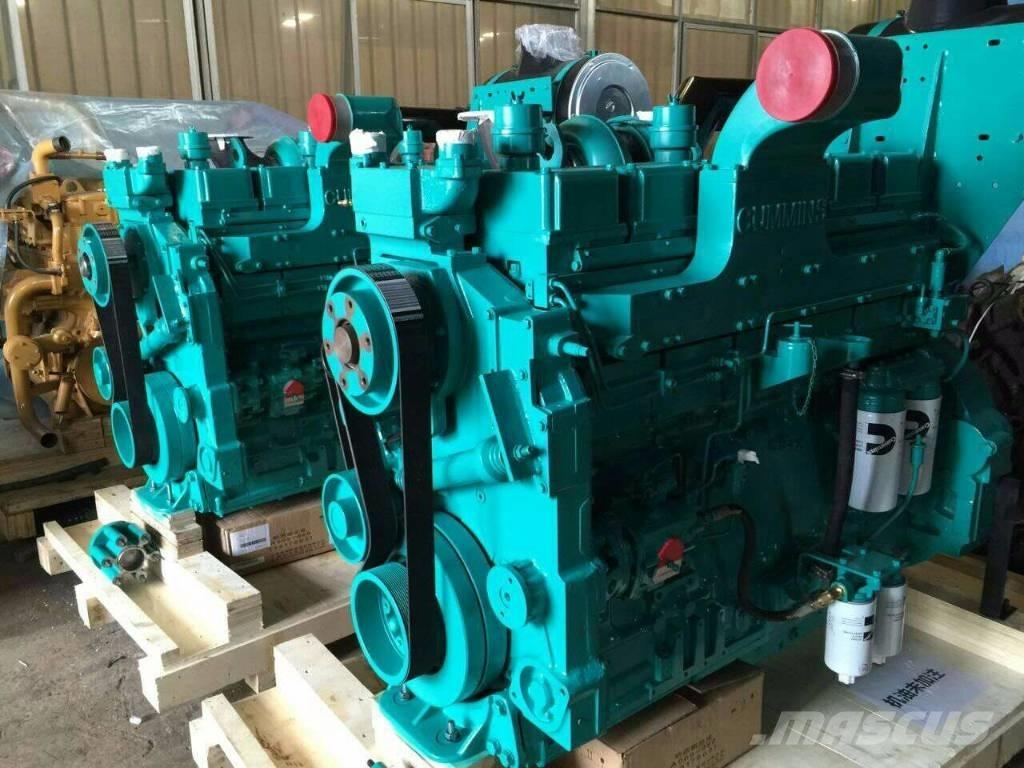

Cummins KTAA19-G6A Generator Engine
General Information
Engine Model KTAA19-G6A
Engine Type 6 Cylinders, in Line
Displacement 18.9 L
Bore*Stroke(mm) 159 * 159
CPL Number CQ406
Net Weight (with flywleel & alternator) 1905 KG
Overall Diemension(L*W*H) 1324mm*835mm*1183mm
Technical Specification
Fuel System PT Pump Direct Injection
Aspiration Turbocharged & Intercooled
Governing Rate ≤5%
Electrical System(Starter Motor/Alternator) 12V/24V
Engine Cooling Fluid 30L
Engine Oil Volume 50 L
Performance Data
Rated Power/Speed 555kW/744HP @ 1500rpm
Standby Power/Speed 610kW/818HP @ 1500rpm
Max Engine Oil Consumption 0.24 L/h
Fuel Consumption @ Continous Power 135L/hr
Fuel Consumption @ Rated Power 141.5L/hr
Fuel Consumption @ Standby Power 151L/hr
Jining Haoduo Import and export co., Ltd.
Second floor, First section, No.2 building,Jining Lantian Boiler 272000 Jining 济宁 Shandong 山东 中華人民共和国
