コベルコ建機 7200

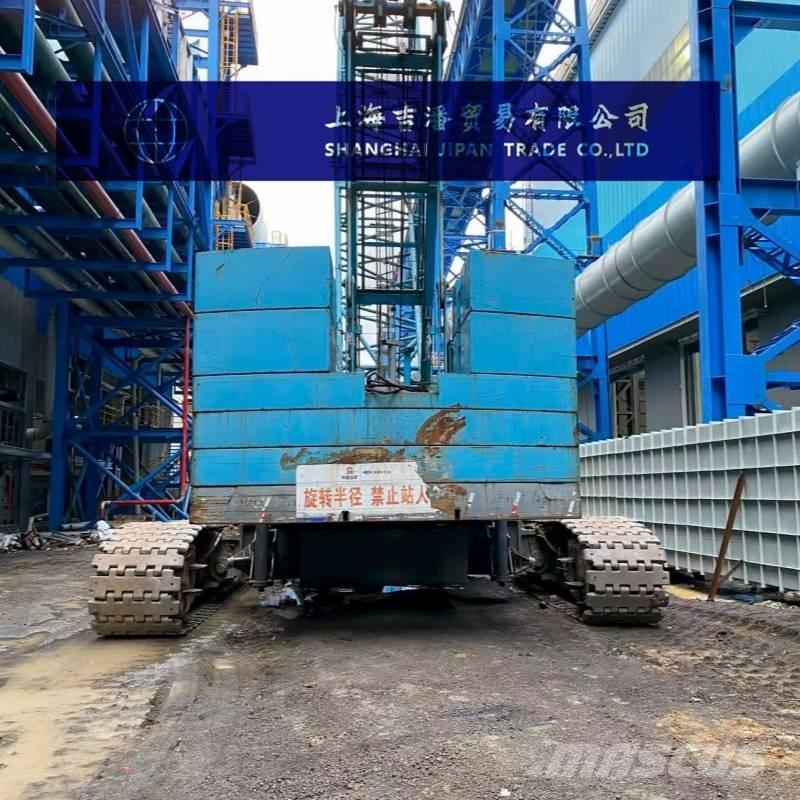

Fly Jib Hook Counter Weight We're from Shanghai Jipan Trade Co.,Ltd.I'm the Sales Manager, specializing in selling used machines from various brands, including excavators,truck cranes,crawler cranes,and so on.With extensive export experience, our machines are sold well in Europe, America, Africa,and other regions, receiving rave reviews and a high repurchase rate. We uphold the principles of integrity and quality, and have a professional service team to provide you with one-stop service, ensuring accurate, efficient, and safe delivery of your machines.We are committed to building long-term relationships with every customer from around the world with competitive prices and superior quality. Contact: Jason WhatsApp/Mobile:0086 13675656717 WeChat:+86 13675656717 Shipping Method:Container Vessel, Bulk Carrier, Flatbed Vessel, or RoRo Vessel.

Basic parameters Model: KOBELCO 7200 Manufacturer:Kobelco Lifting capacity:Heavy pole 200t×4.5m; Light pole: 150t×5.0m; The long pole measures 37.5 tons by 13.9 meters Mainframe weight:162,000 kg The overall dimensions are: length × width × height of the machine shed are 8830×7070×3820mm Boom parameters Main arm length:15.2-73.2m for heavy-duty rods; Light pole:18.3-76.2 meters; The long pole is 70.1-88.4 meters Auxiliary arm length:12.2-30.4 meters The fixed angles between the auxiliary arm and the main arm:10° and 30° Working performance parameters Rotational speed:2.1rpm Walking speed:1.1/0.7km/h Climbing ability:30% ground pressure:1251kpa Power system parameters Engine: Generally, a 12-liter six-cylinder Mitsubishi turbocharged diesel engine is adopted, with a power output of 220kW Lifting system parameters Main and auxiliary hoist speeds: 110m/min to 3m/min The maximum tensile force of a single rope in the hoist: The maximum tensile force of a single rope in the main hoist can reach approximately 30 tons, and that of a single rope in the auxiliary hoist can reach approximately 20 tons. Transportation parameters Transportation length:16000mm Transport width:3000mm Transportation height:4000mm Lifting performance table Heavy-duty main boom rated load table: Due to space limitations, only some parts are listed. For example, when the boom length is 15.2m and the working radius is 4.5m, the lifting capacity is 200.0t. When the arm length is 36.6 meters and the working radius is 8.0 meters, the lifting capacity is 97.5 tons, etc. The rated load table of the main arm of the light pole: Please refer to the specific product manual. There are corresponding lifting capacities under different arm lengths and working radii. The rated load table of the long main boom: It is also necessary to refer to the detailed manual and determine the lifting capacity based on the boom length and working radius. Auxiliary boom rated load table: Auxiliary booms can be used when the main boom length is 45.7-73.2 meters. The auxiliary boom lengths are divided into four types:12.2 meters,18.0 meters,24.4m, and 30.4m, and the corresponding lifting capacity is between 2.4 tons and 13.5 tons.
