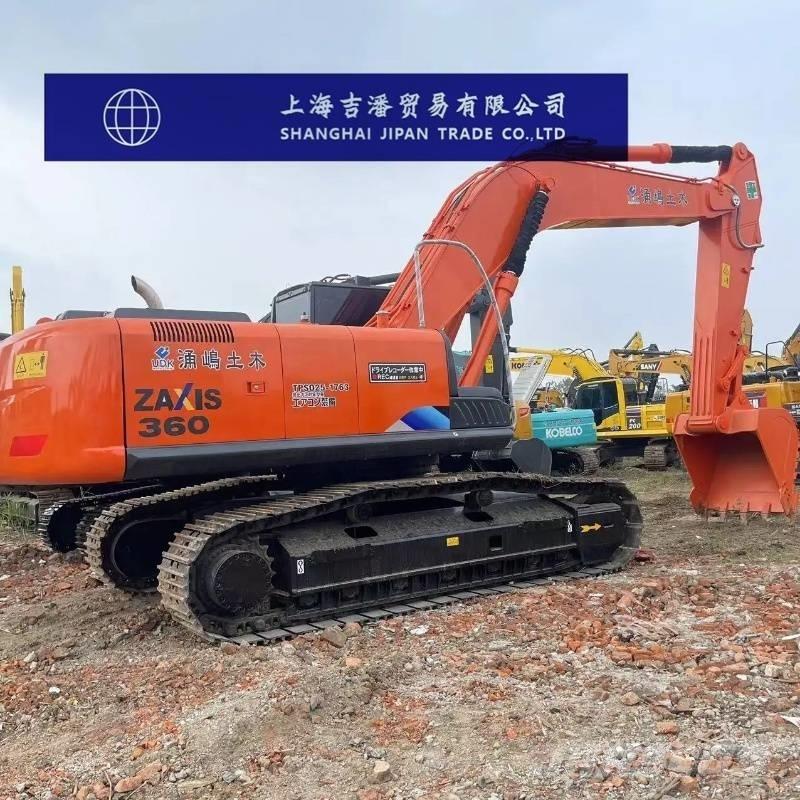

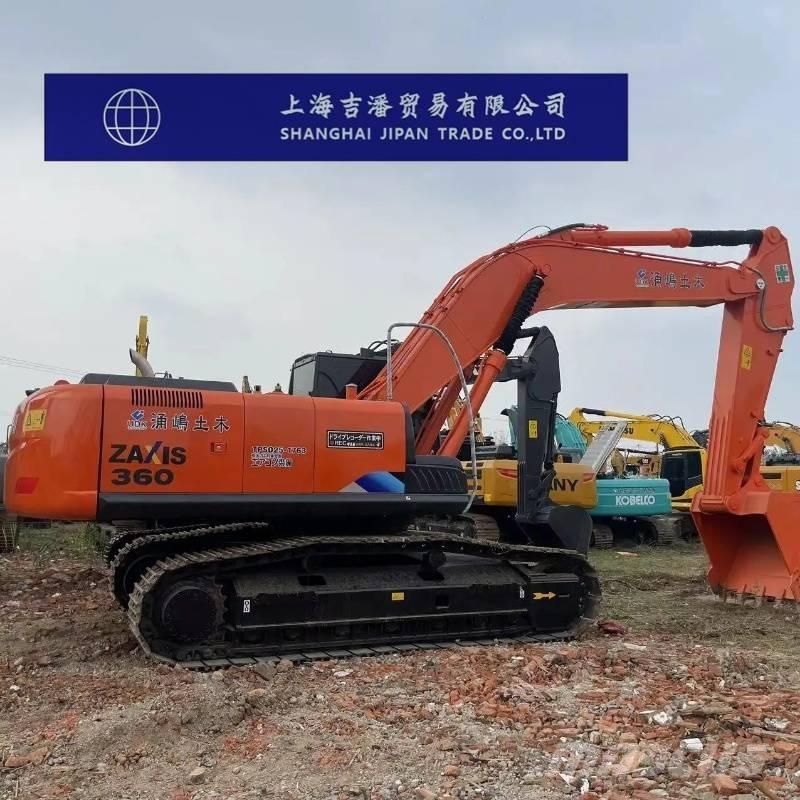

日立建機 ZX 360 LC

We have all the parts for the machinery:ROCK BUCKET/SKELETON BUCKET /LOOSENING BUCKET/CLEANING BUCKET TILT BUCKET/DITCH BUCKET/BUCKET CLAMP/CLAMSHELL BUCKET/ROTARY SCREEN/CRUSHER BUCKET/RUSHER BUCKET CRUSHING AND SCREENING BUCKET/RAKE/RIPPER/THUMB CLIP/COMPACTION WHEEL Business hours,24 hours, holidays and Sundays Address: Shanghai City, China Contact: Nina Whatsapp: +86 18055199047 Mobile:+86 18055199047 Wechat:18055199047 Email: Packaging Details 1. Flat frame is more suitable for large construction equipment without disassembly. 2. Containers are the cheapest and fastest. 3. Bulk carriers are more suitable for large construction equipment. 4. Ro-ro shipment is fast and suitable for all kinds of machines. You can choose any mode of transportation according to your needs

Basic Parameters: Operating weight is 33,400 kg, bucket capacity is 1.62 m³, boom length is 6,400 mm, and arm length is 3,200 mm. Power System: The engine model is Isuzu ISUZU AH-6HK1X, with a rated power of 202 kW at 1,900 rpm. It adopts a water-cooling method, has 6 cylinders, and a displacement of 7.79 L. Performance Parameters: Ground pressure is 65 Kpa, swing speed is 10.7 rpm, gradeability is 70%, maximum bucket digging force is 234 kN, maximum arm digging force is 204 kN, and travel speed is 3.2/5.0 km/h. Hydraulic System: The maximum flow rate of the main pump is 2×288 + 30.2 L/min. The pressure of the travel hydraulic circuit is 34.3 MPa, the pressure of the swing hydraulic circuit is 32.4 MPa, the pressure of the working hydraulic circuit is 34.3 MPa, and the pressure of the pilot circuit is 3.9 MPa. Fluid Capacities: Fuel tank capacity is 630 L, hydraulic oil tank capacity is 180 L, engine oil replacement volume is 41 L, and coolant capacity is 32 L. Dimension Parameters: Total transport length is 11,000 mm, total transport width is 3,190 mm, total transport height is 3,270 mm, overall height of the cab is 3,160 mm, total track length is 4,950 mm, and track shoe width is 600 mm.
