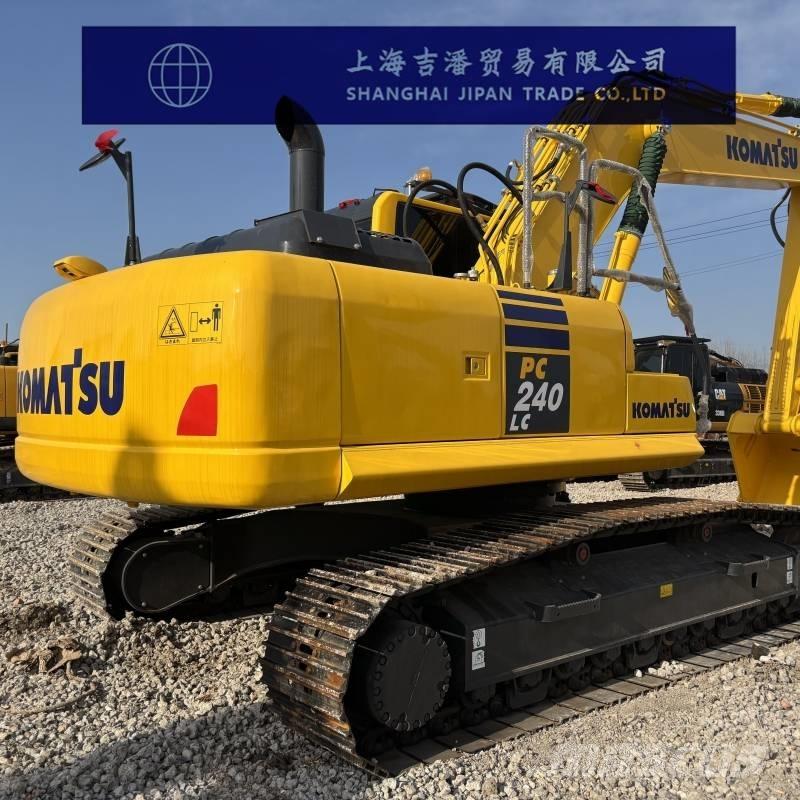

コマツ（小松製作所） PC 240

We have all the parts for the machinery:ROCK BUCKET/SKELETON BUCKET /LOOSENING BUCKET/CLEANING BUCKET TILT BUCKET/DITCH BUCKET/BUCKET CLAMP/CLAMSHELL BUCKET/ROTARY SCREEN/CRUSHER BUCKET/RUSHER BUCKET CRUSHING AND SCREENING BUCKET/RAKE/RIPPER/THUMB CLIP/COMPACTION WHEEL Business hours:24 hours, holidays and Sundays Contact: Jason Whatsapp: +86 13675656717 Mobile:+86 13675656717 Wechat:13675656717 Packaging Details 1. Flat frame is more suitable for large construction equipment without disassembly. 2. Containers are the cheapest and fastest. 3. Bulk carriers are more suitable for large construction equipment. 4. Ro-ro shipment is fast and suitable for all kinds of machines. You can choose any mode of transportation according to your needs.

Parameter configuration of Komatsu PC240 excavator Specification The working weight of the entire machine (kg) is 25,130 Bucket capacity (m³)1.2 Boom length (mm) : 5850 The length of the boom (mm) is 3045 Tonnage (tons)24 Bucket: Backhoe Manufacturer: Joint venture/Imported Power: Traditional power Performance Rotational speed (rpm) : 11.7 Walking speed (km/h)3.1/4.2/5.5 Climbing ability (%)70/35° The ground pressure (Kpa) is 41.7 Bucket digging force (kN)172 The digging force of the bucket arm (kN) is 129 Power system Engine model: Komatsu SAA6D107E-1 Rated power (kw/rpm) : 125/2000 Displacement (L)6.69 Number of cylinders (6 Cylinder diameter × stroke (mm)107×124 The cooling method is water cooling Working forms: direct injection, turbocharged, rear-cooled. Meet the 2006EPA/Tier3 and EUIIIA grade standards. Hydraulic system The maximum flow rate of the main pump (l/min) is 439 Walking hydraulic motor type: Axial piston motor ×2(with parking brake) Rotary hydraulic motor type: Axial piston motor ×1(with a rotary holding valve) The walking hydraulic circuit (Mpa) is 37.3 Rotary hydraulic circuit (Mpa)28.9 Control Hydraulic Circuit (Mpa)3.2 Pilot Oil circuit Boom cylinders - number × cylinder diameter × stroke (mm)130×1335×90 Bucket rod cylinder - number × cylinder diameter × stroke (mm)140×1635×100 Bucket cylinder - Number × cylinder diameter × stroke (mm)130×1020×90 Is the hydraulic crushing pipeline standard? No Oil capacity Fuel tank (L)400 Hydraulic oil tank (L)135 Engine oil change volume (L)23.1 Coolant (L)19.8 Main body size The total length of transportation (mm) is 9885 The total transportation width (mm) is 3280 The total transportation height (mm) is 3185 The total height of the cab (mm) is 3055 The ground clearance of the counterweight (mm) is 1100 Track grounding length (mm) : 3845 The total length of the track (mm) is 4640 Track plate width (mm) : 700 The total width of the tracks (mm) is 3280 Track gauge (mm) : 2580 Minimum ground clearance (mm) : 440 Rear end turning radius (mm) : 2905 Scope of work Maximum excavation radius (mm) : 10180 The maximum excavation radius of the shutdown face (mm) is 10020 Maximum excavation depth (mm) : 6920 The maximum excavation height (mm) is 10,000 Maximum unloading height (mm) : 7035
