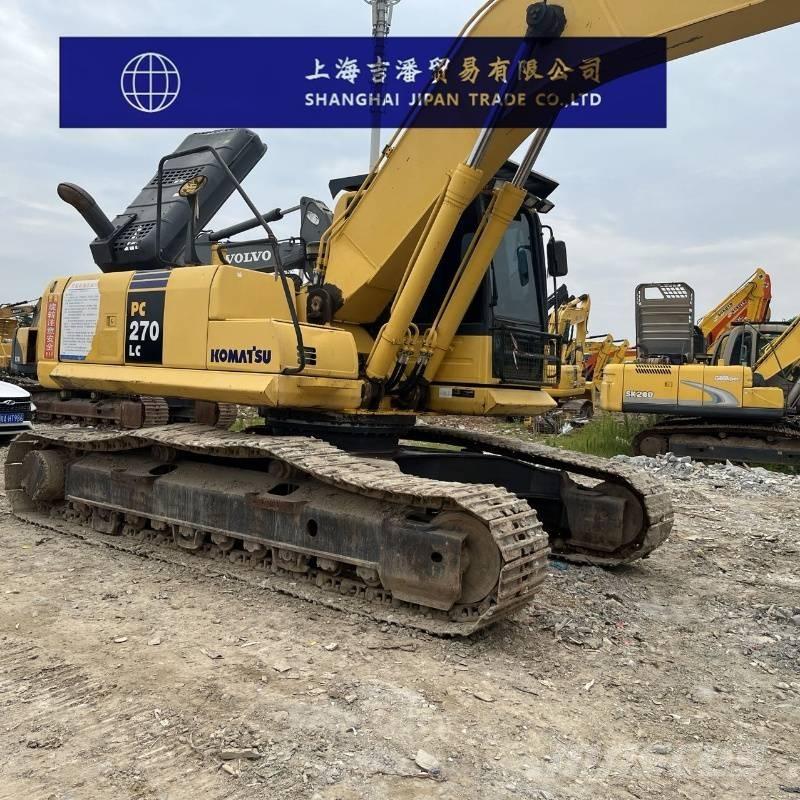

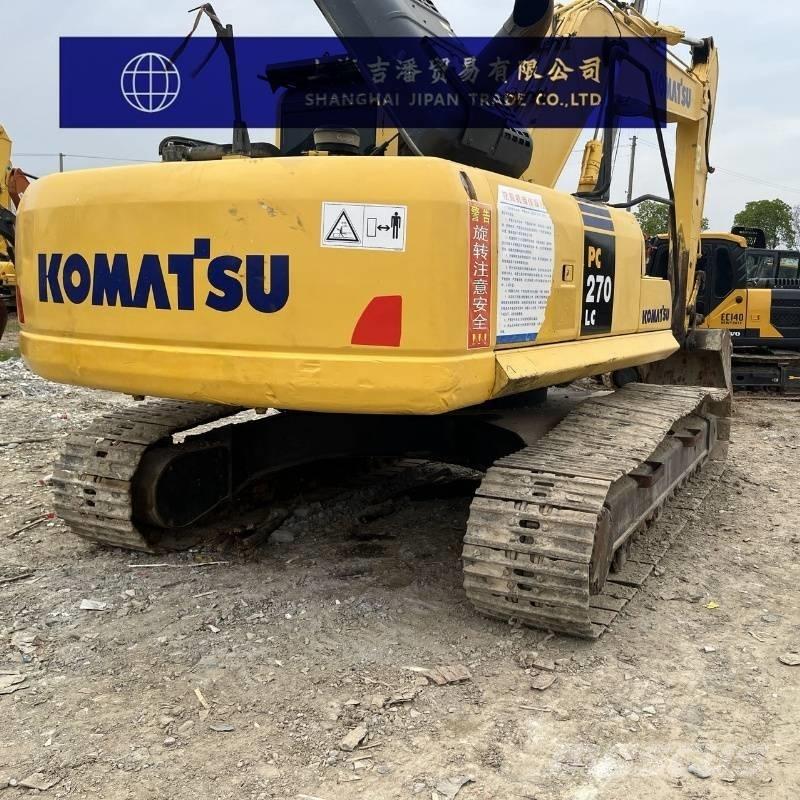

コマツ（小松製作所） PC 270

We have all the parts for the machinery:ROCK BUCKET/SKELETON BUCKET /LOOSENING BUCKET/CLEANING BUCKET TILT BUCKET/DITCH BUCKET/BUCKET CLAMP/CLAMSHELL BUCKET/ROTARY SCREEN/CRUSHER BUCKET/RUSHER BUCKET CRUSHING AND SCREENING BUCKET/RAKE/RIPPER/THUMB CLIP/COMPACTION WHEEL Business hours:24 hours, holidays and Sundays Contact: Lily Whatsapp: +86 13696501072 Mobile:+86 17756597429 Wechat:17756597429 Packaging Details 1. Flat frame is more suitable for large construction equipment without disassembly. 2. Containers are the cheapest and fastest. 3. Bulk carriers are more suitable for large construction equipment. 4. Ro-ro shipment is fast and suitable for all kinds of machines. You can choose any mode of transportation according to your needs.

Komatsu PC270-7 Excavator Parameter Configuration specification The working weight of the whole machine (kg) is 27460 Bucket capacity (m³) 1.3 Boom length (mm) 5850 Stick length (mm) 3045 Place of origin: Jining, Shandong Tonnage (tons) 27 Bucket backhoe Joint ventures/imports Power: Traditional power Bucket backhoe Joint ventures/imports Power: Traditional power performance Rotational speed (rpm) 10.5 Travel speed (km/h) 3.0/4.1/5.5 Climbing ability (%) 70/35° Grounding specific pressure (Kpa) 48 Bucket digging force (kN) 198 Stick digging force (kN) 148 dynamical system Engine model Komatsu SAA6D102E-2 Rated power (kw/rpm) 134/2050 Displacement (L) 5.88 Cooling method: Water cooling Working form 6-cylinder, direct injection, turbocharged, after-cooled engine; Bore × stroke: 102mm×120mm; Meets 2006 EPA/Tier 3 and EUIIIA standards. Hydraulic system The maximum flow rate of the main pump (l/min) is 450 Traveling Hydraulic Motor Type Axial Piston Motor ×2 (with Parking Brake) Slewing Hydraulic Motor Type Axial Piston Motor ×1 (with Slewing Holding Valve) Travel Hydraulic Circuit (Mpa) 37.3 Slewing Hydraulic Circuit (Mpa) 28.4 Control Hydraulic Circuit (Mpa) 3.2 Pilot Oil Circuit Boom cylinder - number × bore × stroke (mm) 140×1300×100 Bucket Cylinder - Number × Bore × Stroke (mm) 150×1635×110 Bucket cylinder - number × bore × stroke (mm) 140×1009×100 Whether the hydraulic crushing pipeline is standard or not Oil capacity Fuel tank (L) 400 Hydraulic Tank (L) 143 Engine oil change volume (L) 24 Coolant (L) 30.9 Body size Total length of transport (mm) 9790 Total Transport Width (mm) 3390 Total height of transport (mm) 3210 Cab total height (mm) 3100 Counterweight ground clearance (mm) 1186 Track grounding length (mm) 3700 Total track length (mm) 4625 Track shoe width (mm) 800 Total Track Width (mm) 3390 Track gauge (mm) 2590 Minimum ground clearance (mm) 498 Rear end turning radius (mm) 2905 Scope of work Maximum digging radius (mm) 10100 The maximum excavation radius of the stopping surface (mm) is 9990 Maximum digging depth (mm) 6460 Maximum digging height (mm) 10000 Maximum unloading height (mm) 7035 Maximum vertical digging depth (mm) 5650 Maximum effective digging depth (mm) 6320 There is no bulldozer shovel for lifting or pushing depth (mm).
