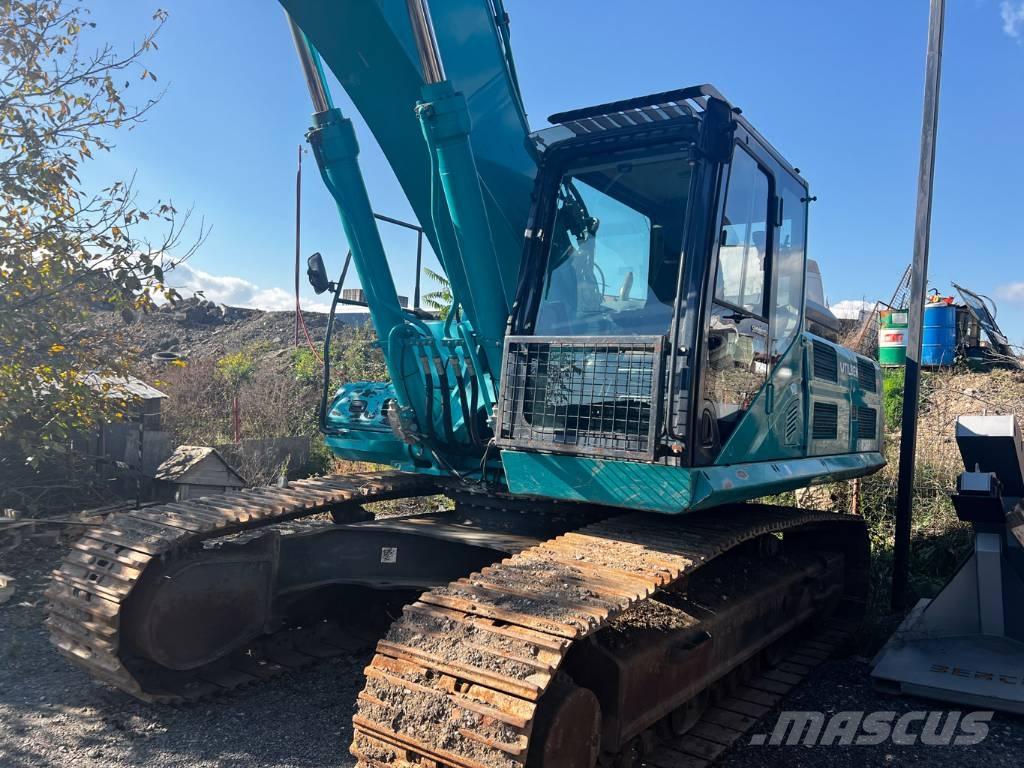

Sunward SWE 365 F Excavator – 2021 Operating weight: 35,900 kg Engine power: 337 HP (252 kW) Hours: 4,285 Warranty: 1 month included in the price General Description The Sunward SWE 365 F (year 2021) is a powerful and reliable excavator designed for demanding earthmoving and construction applications. Equipped with a Cummins Stage V engine, it delivers excellent performance, low fuel consumption, and compliance with the latest emission standards. The spacious, ergonomic cab with air conditioning ensures maximum comfort for the operator, even during long working hours. Main Technical Specifications Engine: Brand: Cummins Model: QS69S5-C338 Type: Direct injection, 4-stroke, water-cooled, turbocharged, intercooler Displacement: 8.9 L Power: 252 kW / 337 HP / 1800 rpm Electrical System: Nominal voltage: 24 V Battery: 120 Ah Alternator: 24V – 75A Starter: 24V – 7.8 kW Performance: Travel speed: 5.8 / 3.6 km/h Gradeability: 35° Maximum traction force: 279 kN Bucket digging force: 250 kN Arm digging force: 168 kN Ground pressure: 63.6 kPa Swing speed: 9.1 rpm Capacities: Fuel tank: 640 L Hydraulic tank: 290 L Hydraulic System: Type: 2 piston pumps Flow rate: 2 x 324 L/min Pressure: 31.4 / 34.3 MPa Dimensions and Working Range Transport length: 11,170 mm Transport width: 2,960 mm Transport height: 3,400 mm Track shoe width: 600 mm Ground clearance: 1,190 mm Maximum digging depth: 7,465 mm Maximum cutting height: 10,515 mm Maximum loading height: 7,440 mm Maximum reach at ground level: 11,130 mm Maximum reach with extended arm: 11,330 mm Additional Equipment Enclosed cab with air conditioning DPF + AdBlue emission system Standard bucket capacity: 1.6 m³
