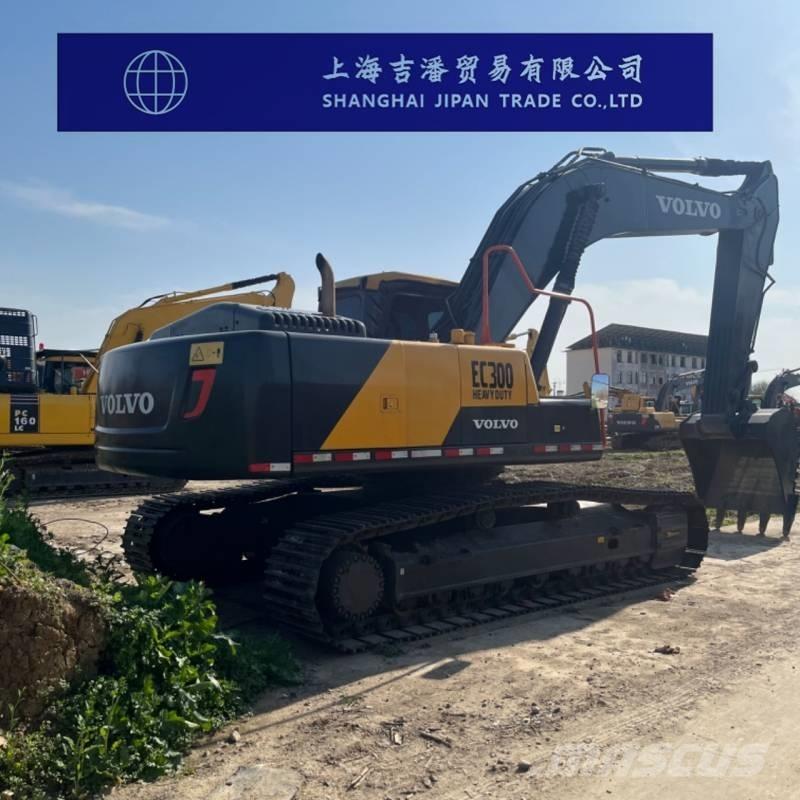

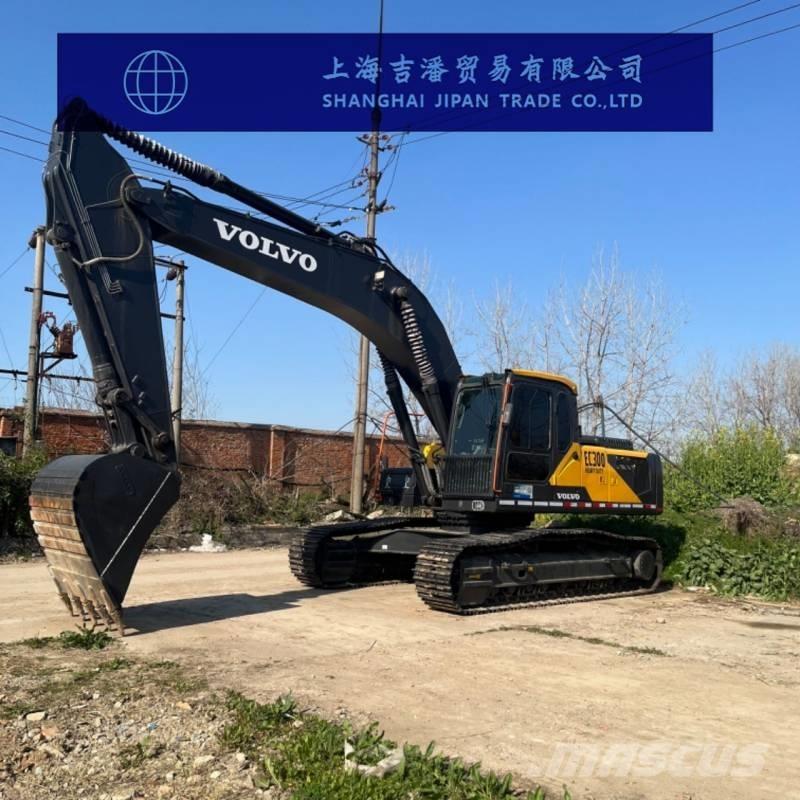

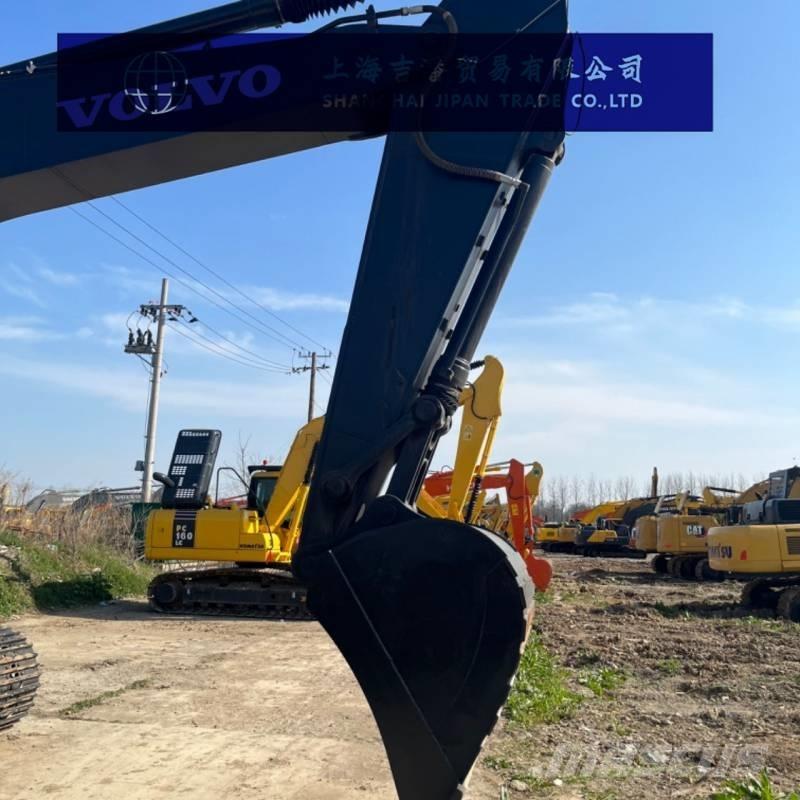

ボルボ EC 300

We have all the parts for the machinery:ROCK BUCKET/SKELETON BUCKET /LOOSENING BUCKET/CLEANING BUCKET TILT BUCKET/DITCH BUCKET/BUCKET CLAMP/CLAMSHELL BUCKET/ROTARY SCREEN/CRUSHER BUCKET/RUSHER BUCKET CRUSHING AND SCREENING BUCKET/RAKE/RIPPER/THUMB CLIP/COMPACTION WHEEL Business hours:24 hours, holidays and Sundays Contact: Jason Whatsapp: +86 13675656717 Mobile:+86 13675656717 Wechat:13675656717 Packaging Details 1. Flat frame is more suitable for large construction equipment without disassembly. 2. Containers are the cheapest and fastest. 3. Bulk carriers are more suitable for large construction equipment. 4. Ro-ro shipment is fast and suitable for all kinds of machines. You can choose any mode of transportation according to your needs.

Specification Power: Traditional power Manufacturer: Joint venture/Imported Bucket backhoe Tonnage (tons)30 The working weight of the entire machine (kg) is 30040 Bucket capacity (m³)1.4 Boom length (mm)6430 The length of the boom (mm) is 3710 Performance Rotational speed (rpm) : 10.7 The rotary torque (Nm) is 110.9 Walking speed (km/h) : 3.4/5.4 Climbing ability (%) : 35° Maximum traction force (kN)247 Power system Engine model: D7E Rated power (kw/rpm)169/1800 Maximum torque (N.m) : 1080/1350 Displacement (L)7.1 Number of cylinders (6 Cylinder diameter × stroke (mm)108×130 Working form: turbocharged, 4-stroke, water-cooled, direct injection type Hydraulic system The maximum flow rate of the main pump (l/min) is 2×263 Working hydraulic circuit (Mpa)33.3/36.3 Walking hydraulic circuit (Mpa)36.3 Rotary hydraulic circuit (Mpa)27.9 Boom cylinders - Number × cylinder diameter × stroke (mm)2×140×1480 Bucket rod cylinder - number × cylinder diameter × stroke (mm)1×150×1745 Bucket cylinder - Number × cylinder diameter × stroke (mm)1×140×1140 Oil capacity Fuel tank (L)470 Hydraulic oil tank (L)195 Hydraulic system (L)400 Coolant (L)41 Main body size The total length of transportation (mm) is 10,640 The total transportation width (mm) is 3190 The total transportation height (mm) is 3090 The total height of the cab (mm) is 3090 The width of the vehicle (mm) is 890 The total length of the tracks (mm) is 4870 Track plate width (mm) : 600 Minimum ground clearance (mm) : 480 The ground clearance of the counterweight (mm) is 1135 Scope of work Maximum excavation radius (mm) : 10190 The maximum excavation radius (mm) of the shutdown face is 9980 Maximum excavation depth (mm) : 6850 Maximum excavation height (mm) : 9660 Maximum unloading height (mm) : 6670 Maximum vertical excavation depth (mm) : 5730 Maximum effective excavation depth (mm) : 6610
