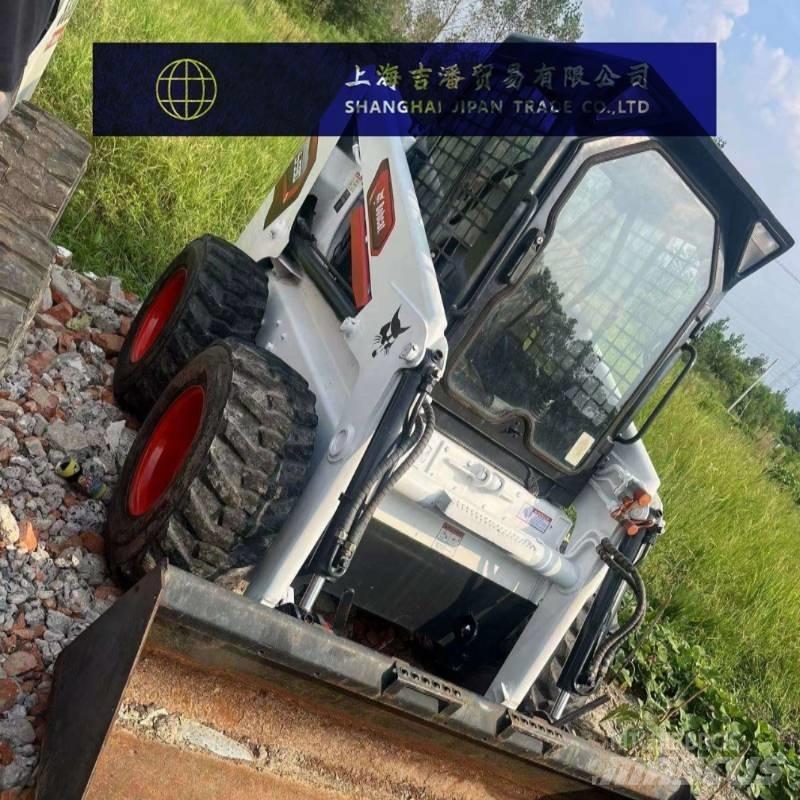

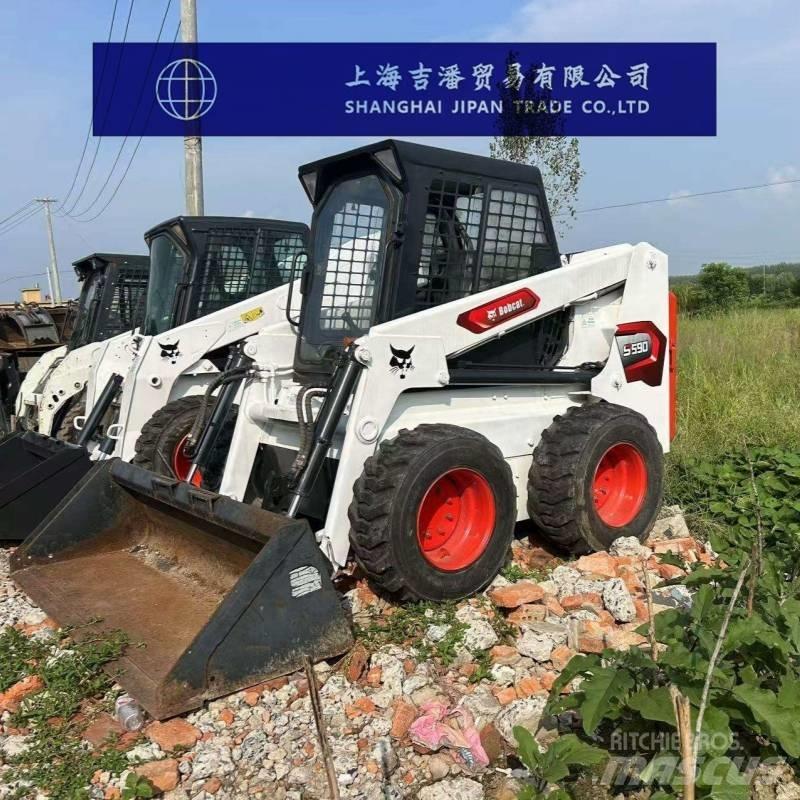

ボブキャット/Bobcat S 590

We have all the parts for the machinery:ROCK BUCKET/SKELETON BUCKET /LOOSENING BUCKET/CLEANING BUCKET TILT BUCKET/DITCH BUCKET/BUCKET CLAMP/CLAMSHELL BUCKET/ROTARY SCREEN/CRUSHER BUCKET/RUSHER BUCKET CRUSHING AND SCREENING BUCKET/RAKE/RIPPER/THUMB CLIP/COMPACTION WHEEL Business hours,24 hours, holidays and Sundays Address: Shanghai City, China Contact: Jason Whatsapp: +86 13675656717 Mobile:+86 13675656717 Wechat:13675656717 Email: Packaging Details 1. Flat frame is more suitable for large construction equipment without disassembly. 2. Containers are the cheapest and fastest. 3. Bulk carriers are more suitable for large construction equipment. 4. Ro-ro shipment is fast and suitable for all kinds of machines. You can choose any mode of transportation according to your needs.

Basic performance parameters Rated loading capacity: 953kg Overall weight: 3,069 kg Bucket lifting force: 21.28kN Boom lifting force: 20.67kN Walking mode: Tire type Tonnage range: 0.8-1 ton Engine parameters Engine model: Hyundai Doosan/D24 (National IV Emission Standard) Type: Water-cooled, turbocharged diesel engine Rated power: 50.7kW Maximum torque: 252N·m Total displacement: 2.4L Parameters of the hydraulic system Flow rate (at rated speed) : 64.7L/min High-flow hydraulic volume: 101.1L/min Rated working pressure: 23.8-24.5MPa Parameters of the transmission system Maximum driving speed (forward/backward) : 11.2/18.4km/h (single speed/dual speed) Oil quantity parameter Fuel tank capacity: 93.7 liters Overall machine size parameters The total length of the machine (including the bucket) is 3378mm The total length of the machine (without accessories) is 2657mm Overall width of the machine (tire edge) : 1643mm Overall width of the machine (edge of the bucket) : 1727mm Overall height of the machine: 1972mm Wheelbase: 1082mm Track: 1374mm Minimum ground clearance: 228mm Operation scope parameters Maximum unloading height: 2319mm Unloading distance (at maximum height) : 818mm The maximum height of the bucket hinge pin is 3023mm Forward turning radius (with bucket) : 2032mm Departure Angle: 24.2° The tipping Angle of the bucket on the ground: 30° Unloading Angle at the maximum unloading height: 42° The maximum turning Angle of the bucket: 97°
