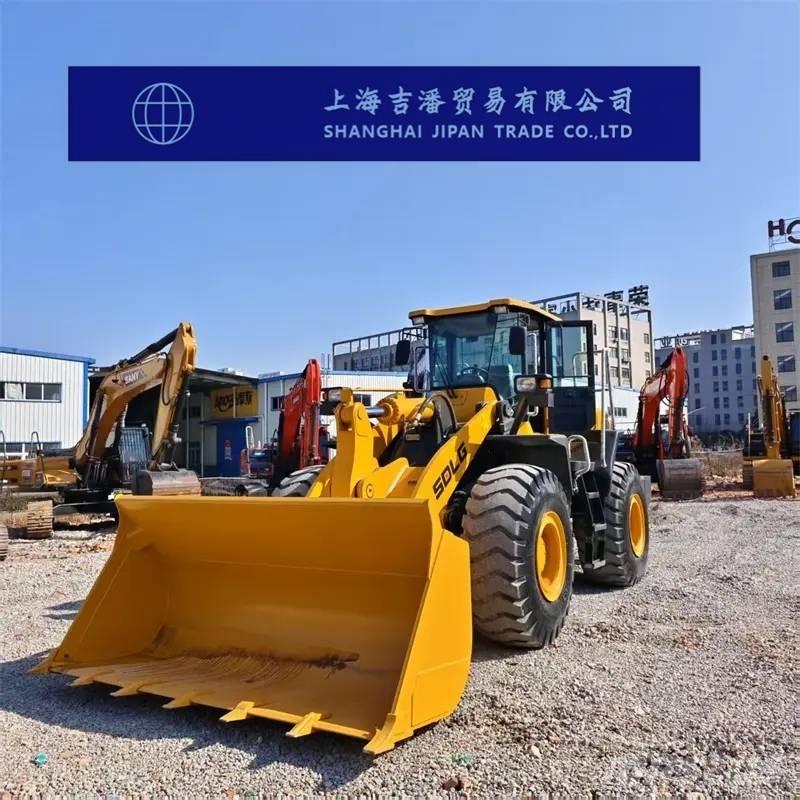

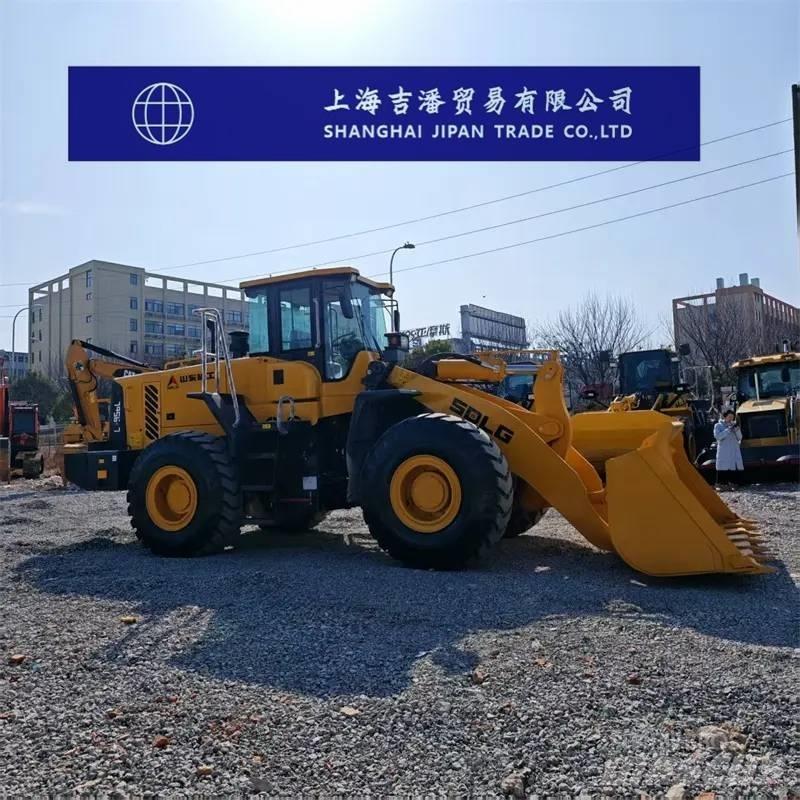

SDLG LG 956 L

We have all the parts for the machinery:ROCK BUCKET/SKELETON BUCKET /LOOSENING BUCKET/CLEANING BUCKET TILT BUCKET/DITCH BUCKET/BUCKET CLAMP/CLAMSHELL BUCKET/ROTARY SCREEN/CRUSHER BUCKET/RUSHER BUCKET CRUSHING AND SCREENING BUCKET/RAKE/RIPPER/THUMB CLIP/COMPACTION WHEEL Business hours:24 hours, holidays and Sundays Contact: Jason Whatsapp: +86 13675656717 Mobile:+86 13675656717 Wechat:13675656717 Packaging Details 1. Flat frame is more suitable for large construction equipment without disassembly. 2. Containers are the cheapest and fastest. 3. Bulk carriers are more suitable for large construction equipment. 4. Ro-ro shipment is fast and suitable for all kinds of machines. You can choose any mode of transportation according to your needs.

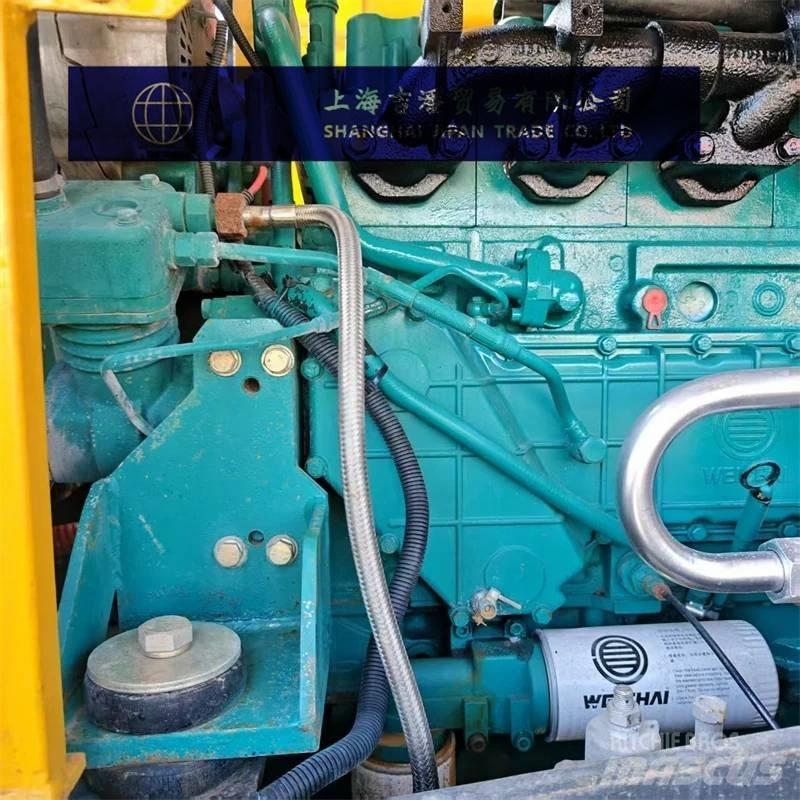

Main performance parameters The overall working mass of the machine: 17,000-17,250 kg Bucket capacity: 2.5-4.5m³, and there are also different configurations such as 2.7m³ and 2.8m³ Rated load capacity: 5000kg Maximum rise force: ≥180kN Maximum unloading height: 3180-3700mm, and there is also a claim of 3190mm Unloading distance: 1090-1160mm, and there is also a claim of 1100mm Overall machine size parameters The overall dimensions of the machine (length × width × height) are 8430×3024×3382mm, and there are also descriptions of 8040×3060×3382mm Minimum ground clearance: 457mm Wheelbase: 3200mm Track: 2190mm Power and transmission parameters Engine brand and model: Weichai WD10G220ENG33, in-line, water-cooled, dry cylinder liner, electronic fuel injection engine Rated power/speed: 162kW/2000r/min Maximum torque: 930N·m Transmission model: Planetary power shift Driving speed: 1st gear (forward/reverse) 0-12.0/0-15.8km/h; Gear 2 (forward/reverse) 0-37.8km/h Other important parameters Maximum traction force: ≥167kN, and there is also a claim that it is ≥160kN Maximum climbing ability: 30° The sum of three items and time: ≤11 seconds Maximum steering Angle: 38° Overturning load: 110kN Fuel tank capacity: 460 liters Hydraulic system capacity: 210L Engine oil capacity: 20L Transmission system capacity: 44L Other configurations and features Drive system: tire-type, front-wheel drive Steering system: Load-sensing full hydraulic articulated steering Braking system: The service brake adopts the air-top oil caliper disc type, and the parking brake adopts the manual pneumatic caliper disc type
