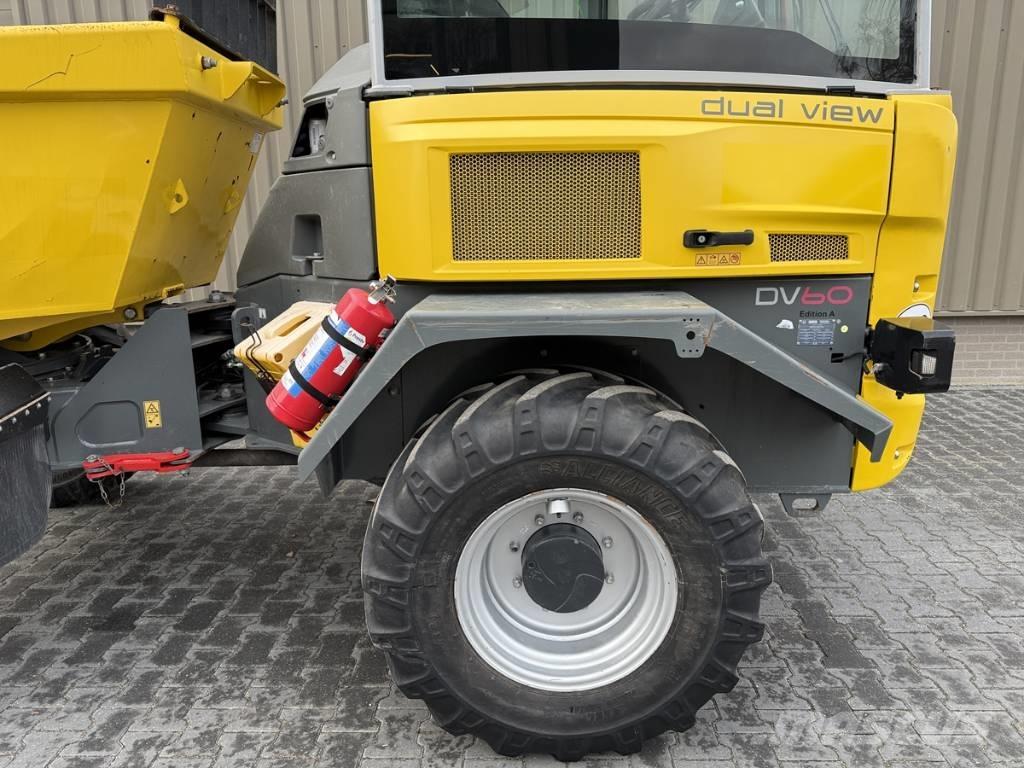

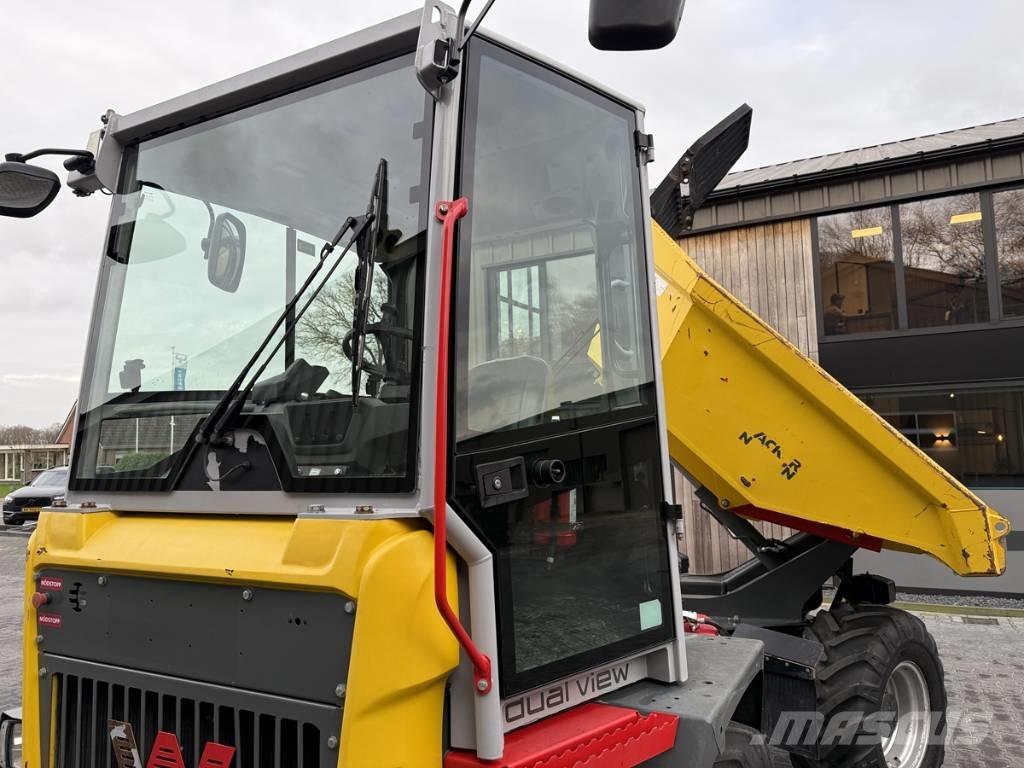

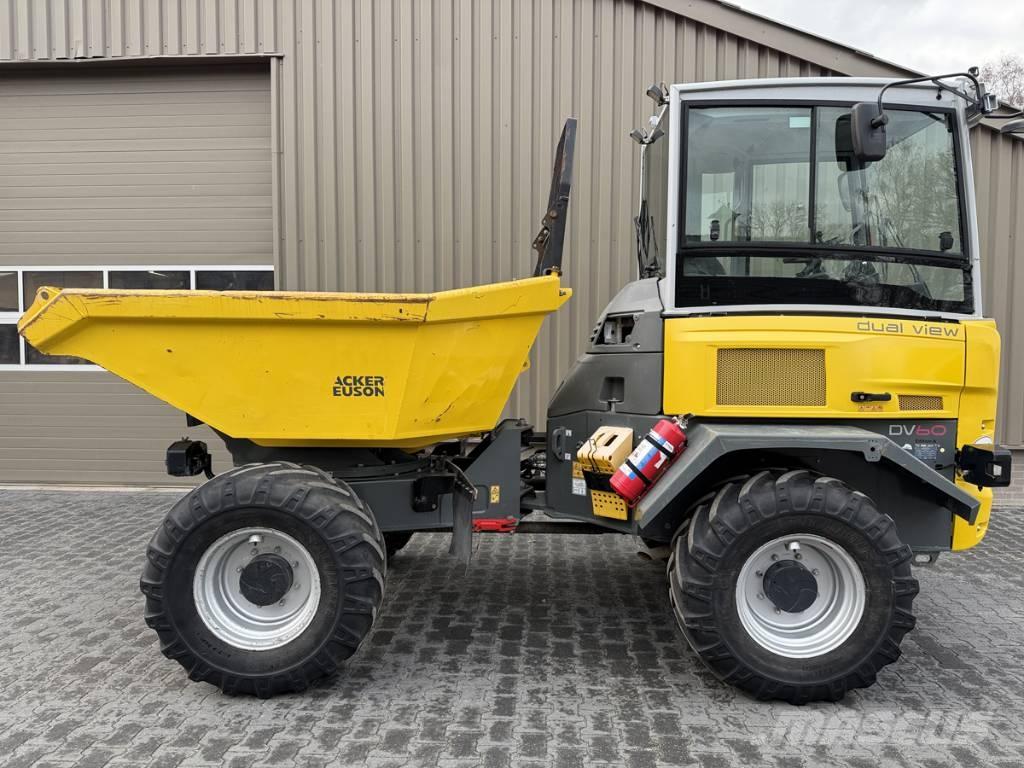

Wacker Neuson DV 60

Technical Specifications Gradeability: 58% Travel Speed: 25 km/h Length: 4,441 mm Width: 2,328 mm Height: 3,435 mm Operating Weight (min.–max.): 4,220–4,549 kg Payload: 6,000 kg Bucket Capacity (Struck): 2,700 L Bucket Capacity (Headed): 3,500 L Bucket Volume (Water Level): 1,900 L Pivot Angle: 11° Bucket: Front Dump Turning Radius: 6,110 mm Articulation Angle: 29° Tires: 405/70-20 Number of Cylinders: 4 Displacement: 2,924 cm³ Engine Type: Diesel Engine Designation: Deutz TD2.9 L4 Effective power: 55.4 kW Rated engine speed: 2,300 rpm Fuel: HVO EN15940 Exhaust limit: EU Stage V Hydraulic operating pressure: 240 bar Flow rate 1: 73 L/min Flow rate 2: 123 L/min Hydraulic pump: Axial piston pump Fuel tank: 60 L Hydraulic tank: 48 L
