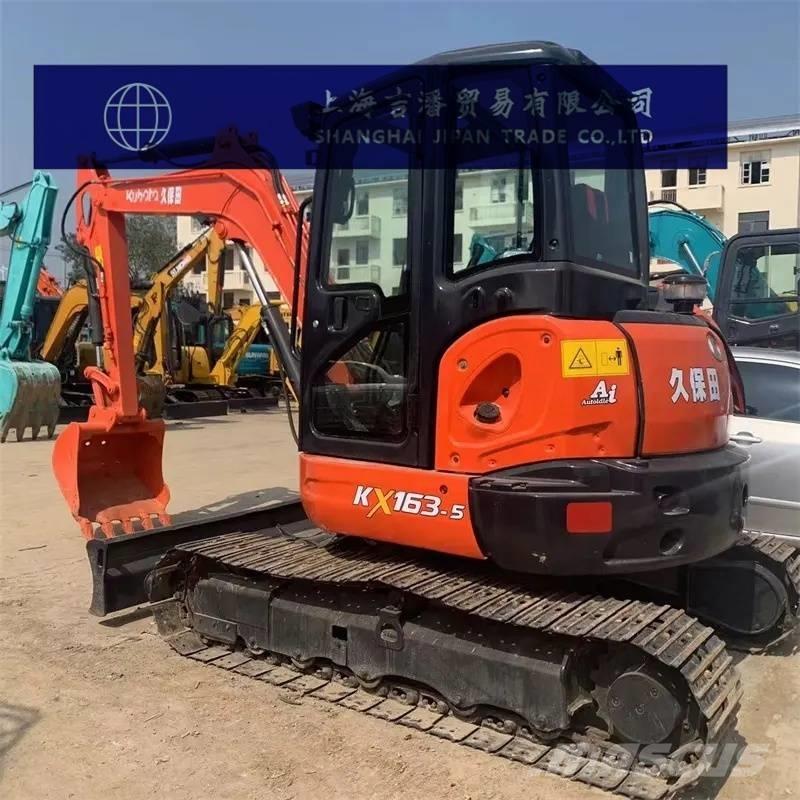

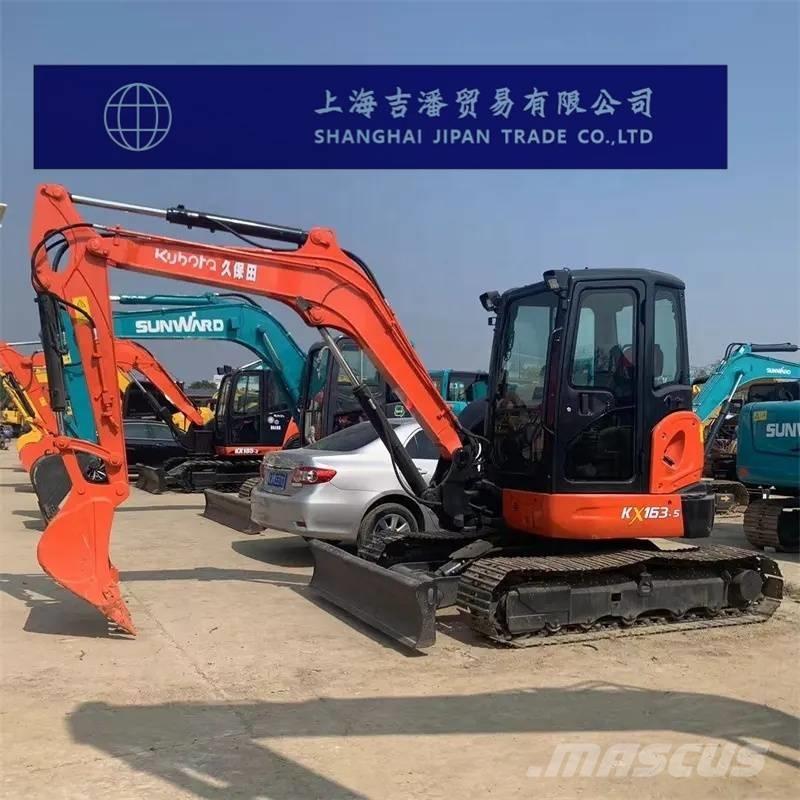

クボタ KX 163-5

We have all the parts for the machinery:ROCK BUCKET/SKELETON BUCKET /LOOSENING BUCKET/CLEANING BUCKET TILT BUCKET/DITCH BUCKET/BUCKET CLAMP/CLAMSHELL BUCKET/ROTARY SCREEN/CRUSHER BUCKET/RUSHER BUCKET CRUSHING AND SCREENING BUCKET/RAKE/RIPPER/THUMB CLIP/COMPACTION WHEEL Business hours,24 hours, holidays and Sundays Address: Shanghai City, China Contact: Nina Whatsapp: +86 18055199047 Mobile:+86 18055199047 Wechat:18055199047 Email: Packaging Details 1. Flat frame is more suitable for large construction equipment without disassembly. 2. Containers are the cheapest and fastest. 3. Bulk carriers are more suitable for large construction equipment. 4. Ro-ro shipment is fast and suitable for all kinds of machines. You can choose any mode of transportation according to your needs

Basic Parameters Operating Weight: 5520 kg Bucket Capacity: 0.22 m³ Standard Bucket Width (with/without Side Teeth): 680 mm Overall Dimensions (during Transportation): Overall Length 5500 mm, Overall Width 1960 mm, Overall Height 2550 mm Minimum Ground Clearance: 310 mm Engine Parameters Model: Kubota V2607-DI Total Displacement: 2615 ml Rated Output Power: 35.5 kW (48.3 hp)/2200 rpm Excavation Performance Parameters Maximum Digging Height: 5685 mm Maximum Dumping Height: 3950 mm Maximum Digging Depth: 3690 mm Maximum Vertical Digging Depth: 2670 mm Maximum Digging Radius: 6140 mm Swing Offset of Boom (Right/Left): No specific data Minimum Front Swing Radius (when swinging): 2460 mm Minimum Rear Swing Radius: 1045 mm Maximum Digging Force (Bucket): 40.1 kN (4090 kgf) Travel Part Parameters Track Type: Steel track Track Width: 400 mm Total Track Length: 2500 mm Wheelbase: 1990 mm Track Center Distance: 1560 mm Travel Speed (1st gear/2nd gear): 2.7/4.6 km/h Gradeability: 30° Hydraulic System Parameters Main Pump Type: Variable pump × 2 + Gear pump × 2 Travel Hydraulic Motor Type: Piston hydraulic motor, 2F Swing Hydraulic Motor Type: Piston hydraulic motor Other Parameters Swing Speed: 9.5 rpm (or 9.3 rpm, slightly different data from different sources) Fuel Tank Capacity: 68 L Bulldozer (Width): 1960 mm, Bulldozer (Height): 410 mm, Lift Distance (above/below GL): 440/410 mm Boom Side Shift Device: The boom side shift device is equipped at the front of the machine body, which can realize direct excavation work in areas like the root of walls without frequent machine body movement. Zero-Tail Swing: It has a zero-tail ultra-small swing structure. When the upper part of the machine body rotates, the tail will not exceed the width of the vehicle, so it can operate freely in narrow areas. Automatic Idle: When the control lever stops moving for 4 seconds, the engine automatically switches to idle speed. When the control lever is operated again, the engine immediately returns to the original speed. New Intelligent Control System: The new digital liquid crystal monitoring system can grasp the real-time working status of the excavator. It has functions such as normal operation data display, fault display, 90-day work storage record function, and maintenance time reminder function. Anti-Theft Device: The "SS Key" system developed by Kubota can lock the three major systems of electricity, hydraulics, and fuel. ROPS/FOPS Cab: The ROPS/FOPS cab (with seat belt) that meets world standards is adopted to improve the safety of operators. Large-scale Air Conditioning: The newly designed large-scale air conditioning with both heating and cooling functions has up to 6 air outlets.
