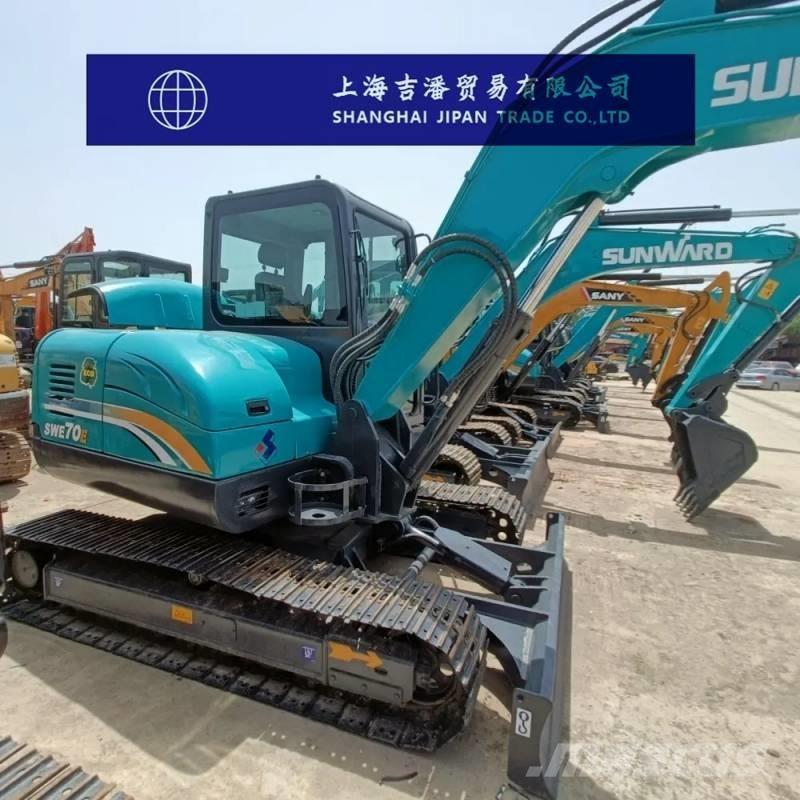

ウォード SWE 70 E

We have all the parts for the machinery:ROCK BUCKET/SKELETON BUCKET /LOOSENING BUCKET/CLEANING BUCKET TILT BUCKET/DITCH BUCKET/BUCKET CLAMP/CLAMSHELL BUCKET/ROTARY SCREEN/CRUSHER BUCKET/RUSHER BUCKET CRUSHING AND SCREENING BUCKET/RAKE/RIPPER/THUMB CLIP/COMPACTION WHEEL Business hours:24 hours, holidays and Sundays Contact: Jason Whatsapp: +86 13675656717 Mobile:+86 13675656717 Wechat:13675656717 Packaging Details 1. Flat frame is more suitable for large construction equipment without disassembly. 2. Containers are the cheapest and fastest. 3. Bulk carriers are more suitable for large construction equipment. 4. Ro-ro shipment is fast and suitable for all kinds of machines. You can choose any mode of transportation according to your needs.

Overall machine parameters Operating weight: 6.68-6.74 tons Overall dimensions (length × width × height) : 6100×2080×2625mm Track width: 400mm Chassis width: 2080mm Platform ground clearance: 700mm Chassis ground clearance: 340mm Operation scope parameters Maximum excavation height: 5970mm Maximum unloading height: 4160mm Maximum excavation depth: 4065mm Maximum vertical excavation depth: 2890mm Maximum excavation radius: 6,335mm Maximum ground excavation reach: 6210mm The maximum lifting height of the bulldozer blade is 470mm The maximum digging depth of the bulldozer shovel is 290mm Performance parameters Standard bucket capacity: 0.22 cubic meters Bucket digging force: 50kN Bucket shaft digging force: 31kN Driving speed: 4.0/2.3km/h Ground pressure: 33.9Kpa Rotational speed: 9rpm Engine parameters Brand: Yanmar Model: Yanmar 4TNV98-VSU Power: 46.2kW/2200rpm Displacement: 3.319L Fuel tank volume parameters Diesel tank capacity: 118 liters Hydraulic oil tank capacity: 96L
