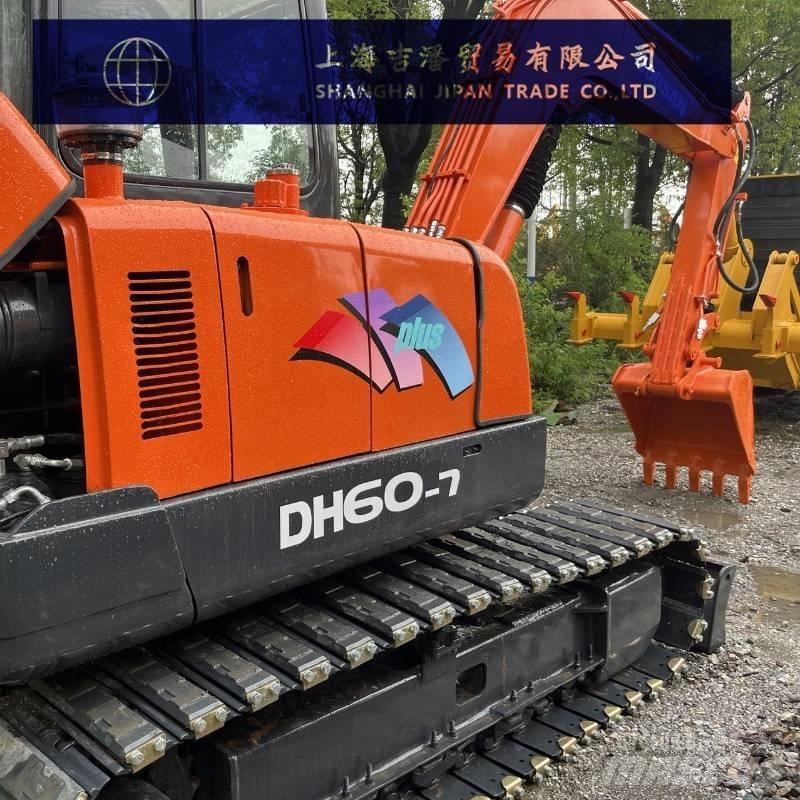

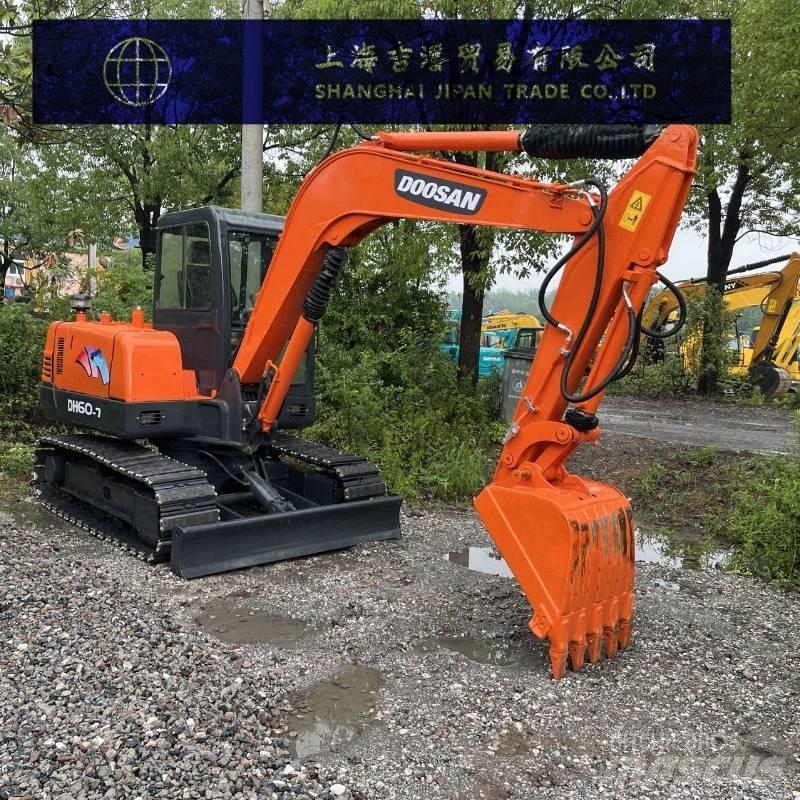

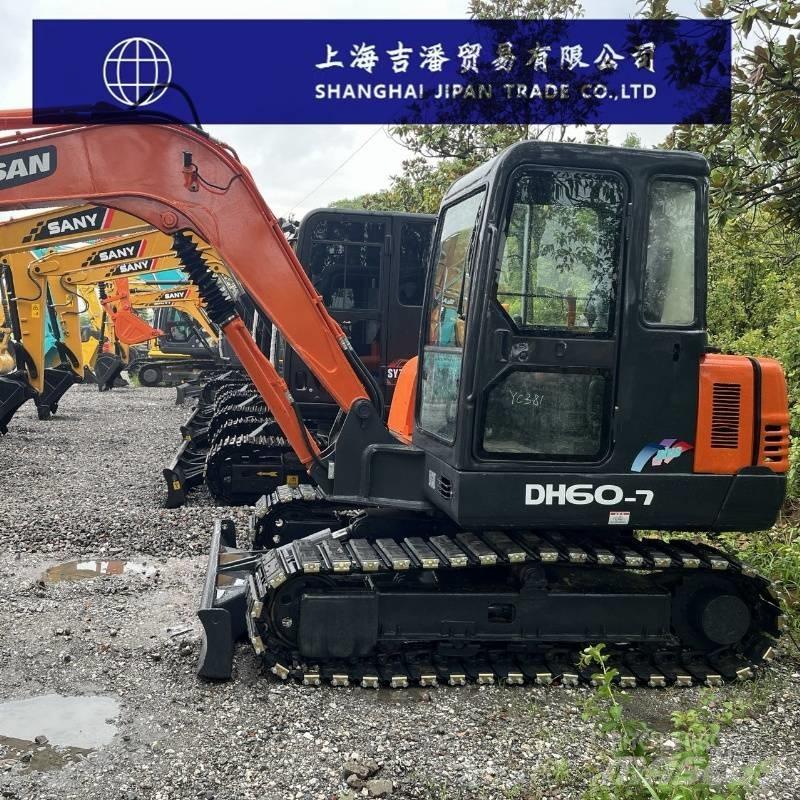

Doosan DH 60-7

We have all the parts for the machinery:ROCK BUCKET/SKELETON BUCKET /LOOSENING BUCKET/CLEANING BUCKET TILT BUCKET/DITCH BUCKET/BUCKET CLAMP/CLAMSHELL BUCKET/ROTARY SCREEN/CRUSHER BUCKET/RUSHER BUCKET CRUSHING AND SCREENING BUCKET/RAKE/RIPPER/THUMB CLIP/COMPACTION WHEEL Business hours,24 hours, holidays and Sundays Address: Shanghai City, China Contact: Nina Whatsapp: +86 18055199047 Mobile:+86 18055199047 Wechat:18055199047 Email: Packaging Details 1. Flat frame is more suitable for large construction equipment without disassembly. 2. Containers are the cheapest and fastest. 3. Bulk carriers are more suitable for large construction equipment. 4. Ro-ro shipment is fast and suitable for all kinds of machines. You can choose any mode of transportation according to your needs.

规格 动力传统动力 厂商合资/进口 铲斗反铲 吨位(吨)6 整机工作重量(kg)5550 铲斗容量(m³)0.09-0.2 动臂长度(mm)3000 斗杆长度(mm)1600 原产地韩国 性能 铲斗挖掘力(kN)37.7 斗杆挖掘力(kN)28.4 动力系统 发动机型号洋马4TNV94L 额定功率(kw/rpm)38.1/2200 气缸数(个)4 冷却方式水冷 工作形式中冷 液压系统 主泵类型变量轴向柱塞泵×2 主泵最大流量(l/min)55×2 先导泵流量(L/min)9.9 工作液压油路(Mpa)20.6 行走液压回路(Mpa)20.6 回转液压回路(Mpa )21.6 主体尺寸 运输总长度(mm)5850 运输总宽度(mm)1880 运输总高度(mm)2575 驾驶室全高(mm)2575 上车宽度(mm)1885 履带接地长度(mm)1990 履带总长度(mm)2540 履带板宽度(mm)400 履带总宽度(mm)1880 履带轨距(mm)1480 最小离地间隙(mm )350 后端回转半径(mm )1650 作业范围 最大挖掘半径(mm)6150 最大挖掘深度(mm)3820 最大挖掘高度(mm)5760 最大卸载高度(mm)4030
