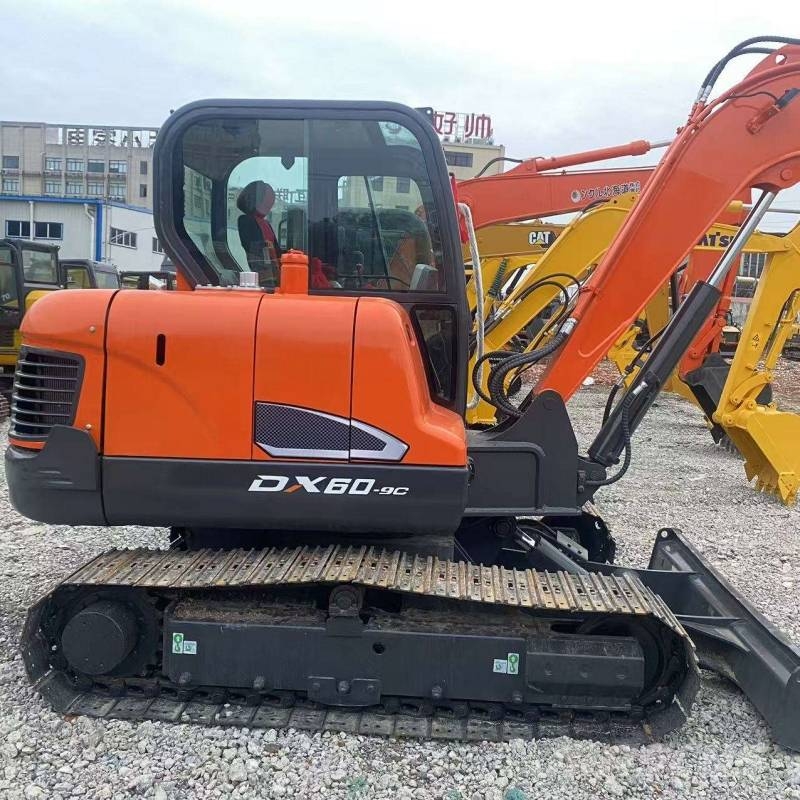

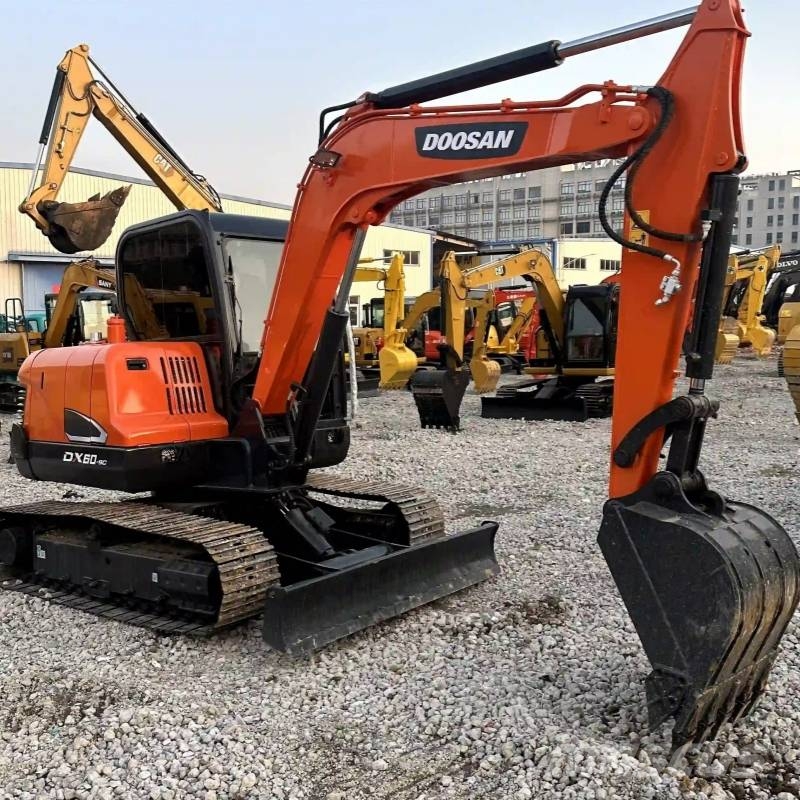

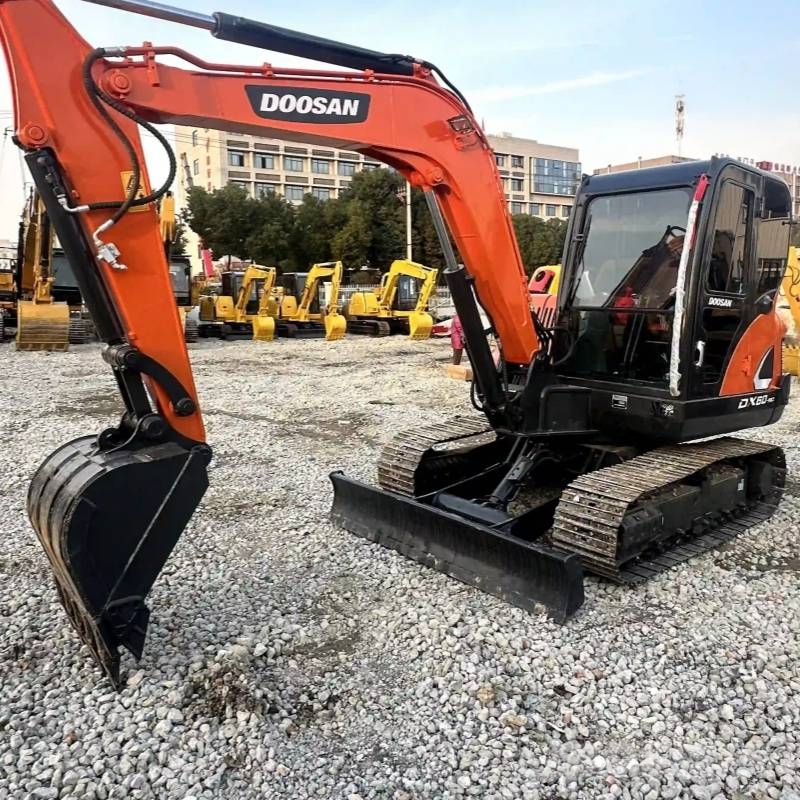

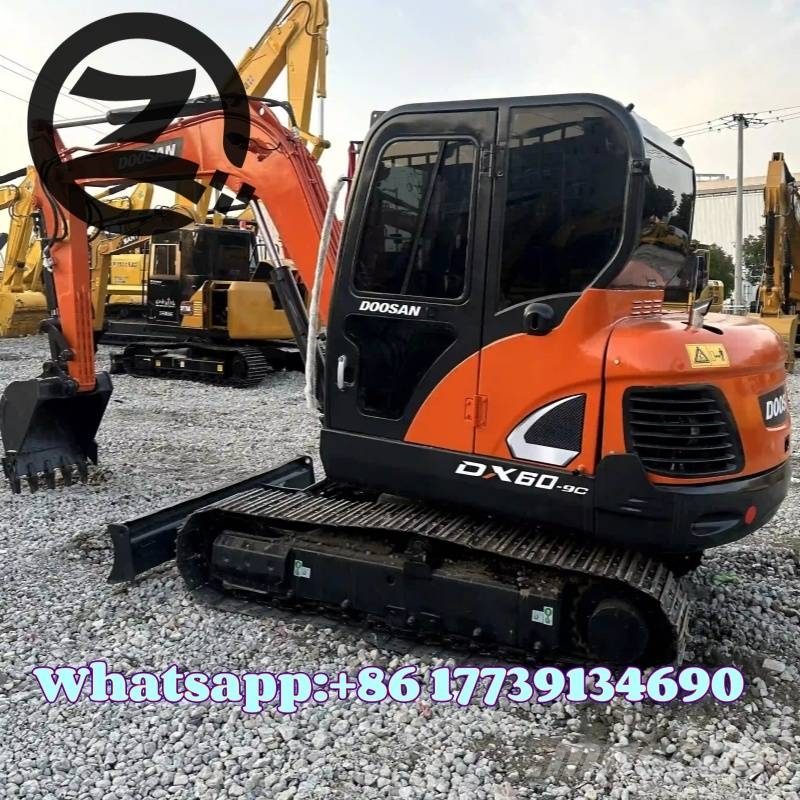

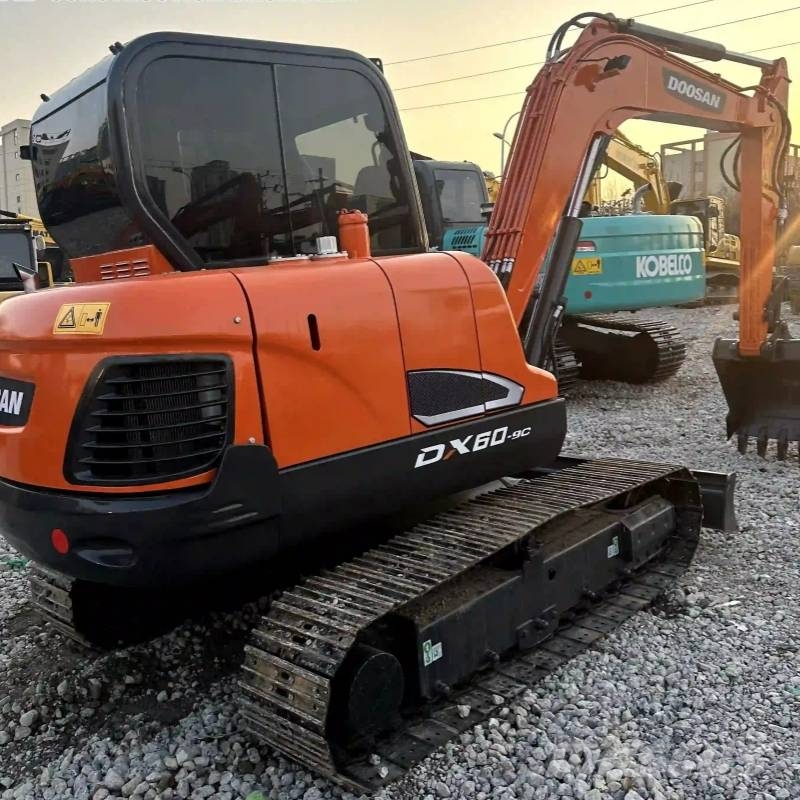

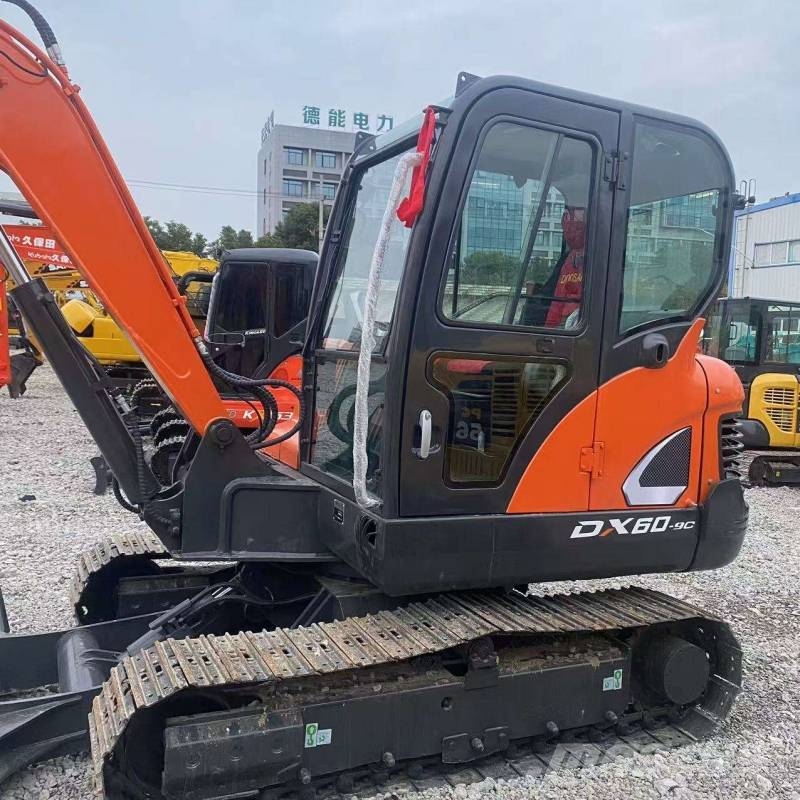

Doosan DX 60-9 C

# DOOSAN DX60-9C Crawler Excavator Specifications Model: DOOSAN DX60-9C Operating Weight: 5700 kg Bucket Capacity: 0.21 m³ Transport Dimensions (L×W×H): 5870 × 2000 × 2565 mm Track Shoe Width: 400 mm Travel Speed (High/Low): 4.2 / 2.3 km/h Swing Speed: 9.2 rpm Bucket Digging Force: 39.2 kN Arm Digging Force: 29.8 kN Max Digging Depth: 3807 mm Max Digging Radius: 6136 mm Max Dumping Height: 4064 mm Max Digging Height: 5788 mm Ground Clearance: 350 mm ## Engine Engine Model: Doosan D24C Rated Net Power: 38.9 kW / 2100 rpm Displacement: 2398 cc Cylinders: 4 in-line, turbocharged with intercooler Emission Standard: EU Stage V (Euro 5) Fuel Tank Capacity: 115 L ## Hydraulic System Hydraulic Type: EPOS load sensing hydraulic system Main Pump Max Flow: 122 L/min Max Working Pressure: 24.5 MPa
