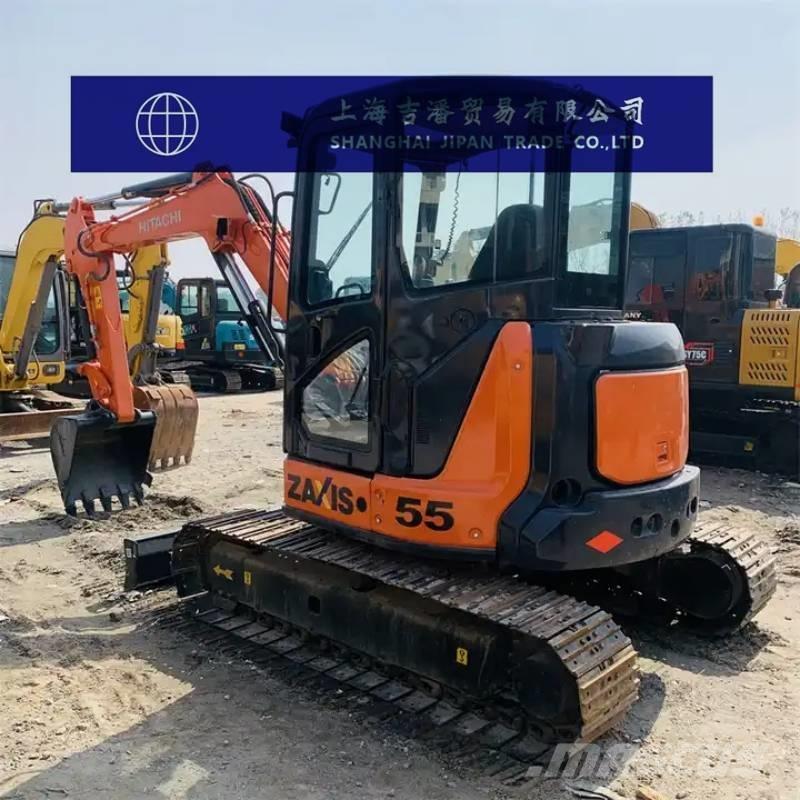

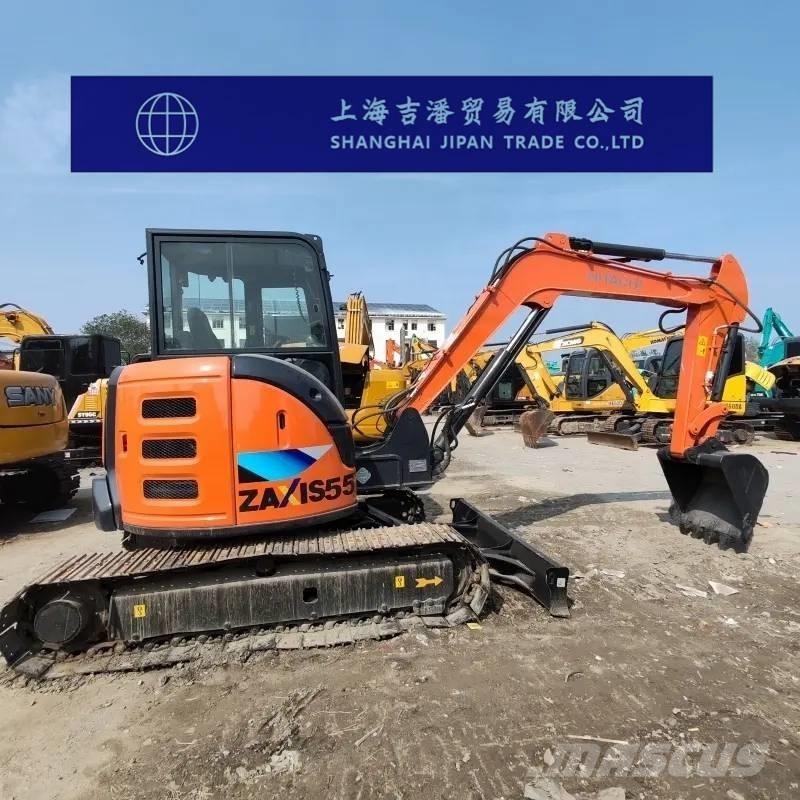

日立建機 ZX 55

We have all the parts for the machinery:ROCK BUCKET/SKELETON BUCKET /LOOSENING BUCKET/CLEANING BUCKET TILT BUCKET/DITCH BUCKET/BUCKET CLAMP/CLAMSHELL BUCKET/ROTARY SCREEN/CRUSHER BUCKET/RUSHER BUCKET CRUSHING AND SCREENING BUCKET/RAKE/RIPPER/THUMB CLIP/COMPACTION WHEEL Business hours:24 hours, holidays and Sundays Contact: Jason Whatsapp: +86 13675656717 Mobile:+86 13675656717 Wechat:13675656717 Packaging Details 1. Flat frame is more suitable for large construction equipment without disassembly. 2. Containers are the cheapest and fastest. 3. Bulk carriers are more suitable for large construction equipment. 4. Ro-ro shipment is fast and suitable for all kinds of machines. You can choose any mode of transportation according to your needs.

Power, traditional power Joint venture/import by manufacturers Bucket backhoe Tonnage (tons)5 The working weight of the entire machine (kg) is 5160 Bucket capacity (m³)0.19 The length of the bucket pole (mm) is 1380 Performance Rotational speed (rpm)9 Rotational torque (Nm)8.6 Walking speed (km/h):High speed:0-4.0/ Low speed:0-2.3 Climbing ability (%)58 Grounding specific pressure (Kpa)29 The bucket digging force (kN) is 36.8 The digging force of the boom (kN) is 24 Maximum traction force (kN)38.3 Power system Engine model: Yanmar EDM-4TNV88 Rated power (kw/rpm)28.1/2400 Maximum torque (N.m):139.6/1100 Displacement (L)2.189 Number of cylinders:4 Bore × stroke (mm):88x 90 Working mode:4-stroke, water-cooled, direct injection type Hydraulic system The main pump type is a variable axial piston pump The rotary hydraulic motor type is one axial piston motor The type of walking hydraulic motor is a 2-variable axial piston motor The maximum flow rate of the main pump (l/min) is 1 x 120 Pilot pump flow rate (L/min)12 Pilot oil circuit (MPa)5.9 Working hydraulic oil circuit (Mpa)24.5 Walking hydraulic circuit (Mpa)24.5 Rotary hydraulic circuit (Mpa)18.3 Boom cylinder - Number × cylinder bore × stroke (mm)1×95×699 Bucket rod cylinder - Number × cylinder bore × stroke (mm)1×80×731 Bucket cylinder - Number × cylinder diameter × stroke (mm)1×75×551 Oil capacity Fuel tank (L)70 Hydraulic oil tank (L)42 Hydraulic system (L)66 Engine oil change rate (L)8.6 Coolant (L)4.7 Main body size Total transportation length (mm)5470 Total transportation width (mm)2000 Total transportation height (mm):2510 The total height of the cab (mm) is 2510 Vehicle width (mm):1850 Total track length (mm):2490 Track plate width (mm):400 Track gauge (mm):1600 Counterweight ground clearance (mm):590 Minimum ground clearance (mm)320 The minimum turning radius (mm) of the front-end working device is 2210 Rear end rotation radius (mm)1100 The maximum height (mm) at the minimum radius of rotation is 4360 Number of sprocket rollers (single side) (pieces)1 Number of track plates (single side) (pieces)39 Number of supporting wheels (single side) (pieces)4 Scope of work Maximum excavation radius (mm):5960 The maximum excavation radius (mm) of the shutdown surface is 5820 Maximum excavation depth (mm):3550 Maximum excavation height (mm):5730 Maximum unloading height (mm):4050 Maximum vertical excavation depth (mm):2830 Width × height (mm) of the push board: Height:375 The lifting or pushing depth of the earthmoving shovel (mm) is 460/365
