Krone Swadro TS 680

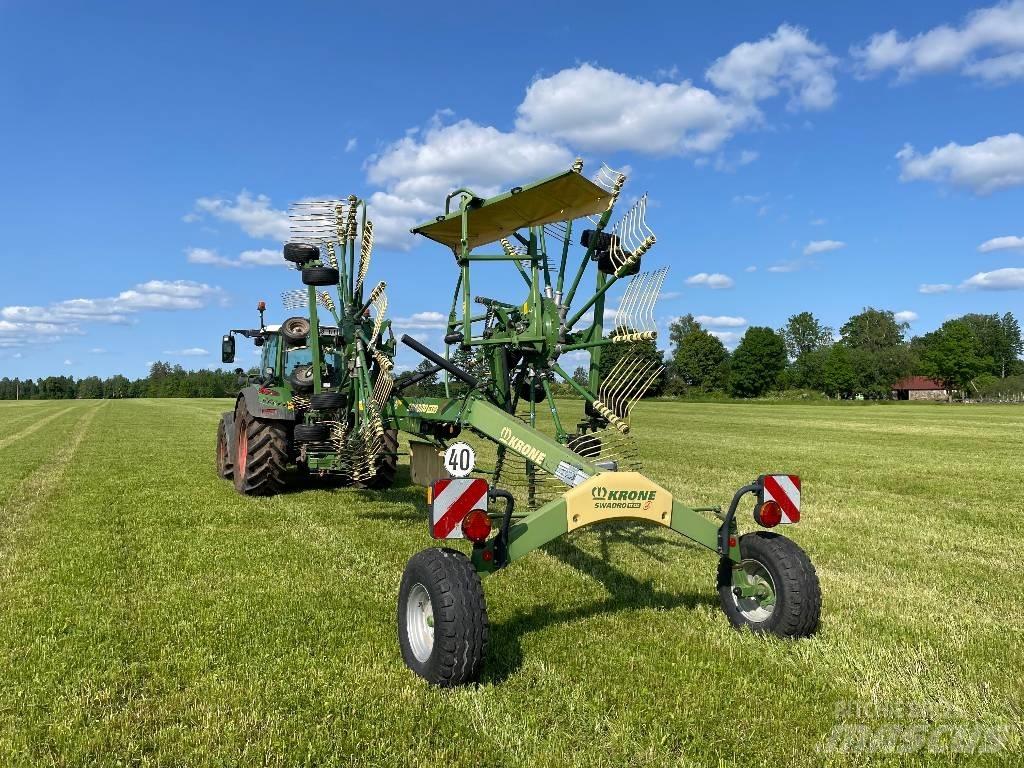

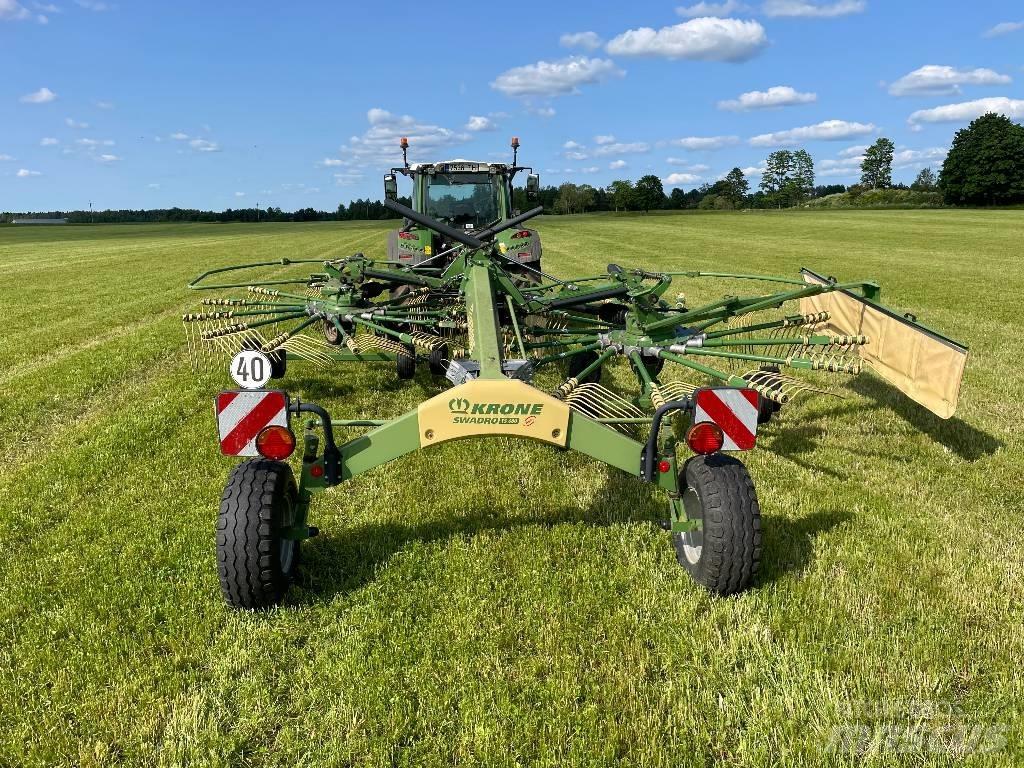

Krone Swadro TS 680 Side Delivery Rake – 2017 🔧 Serviced and repaired using only original spare parts 👤 Single owner ✔️ Well-maintained 🏡 Used by a small-scale farmer Technical Specifications: 🔁 Twin-rotor side delivery rake 📏 Working width: 6,800 mm ↔️ Windrow width: approx. 1,200–1,600 mm 📐 Transport height: approx. 3,990 mm ⚖️ Weight: approx. 2,200 kg (base machine) 🔩 13 tine arms per rotor, each with 4 reinforced double tines 📎 Tine diameter: 10.5 mm 🛞 Tyres (under rotors): 16x6.50-8 Power Requirements and Hitch: ⚙️ Hitch type: CAT II 🔄 Required PTO speed: up to 540 rpm ⚡ Power requirement: approx. 37 kW (50 hp) 🧩 Hydraulic outlets required: 1x single-acting Features and Equipment: 🔧 Manually adjustable working width and rotor height (with scale) 🔒 Integrated transport locks for rotors 🛡️ Automatic windrow curtain adjustment in transport mode 🔩 Suspended rotors for better ground following 🔗 Wide-angle PTO shaft with overload clutch 🔁 Integrated turning axle with wide track 🛬 “Jet-Effect” – rear wheels touch ground first when lowering 📈 “Lift-Effect” for cleaner and more efficient raking 🔧 “DuraMax” heavy-duty, maintenance-free cam tracks 🧱 Reinforced dual-leg parking support 🚨 Road lighting and warning plates included ✅ Field-ready machine in very good condition
